Greenlee DVI-500/K01 Digital Voltage Indicator, 100V-500kV, 4.25"H x 7"W x 4.5"D
- MPN: DVI-500/K01
- UPC: 783310054870
- PPN: GRN-DVI-500/K01
- UNSPSC: 41113637
CAD
$3259.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Digital Voltage Indicator, 100V-500kV, 4.25"H x 7"W x 4.5"D
Features
- Measures voltage up to 500kv line-to-ground
- Voltage readout distinguishes between nominal and induced voltages
- Audible indication when voltage is detected
- Test Point mode available (DVI-500T model)
- Auto-shutoff and low battery indication features

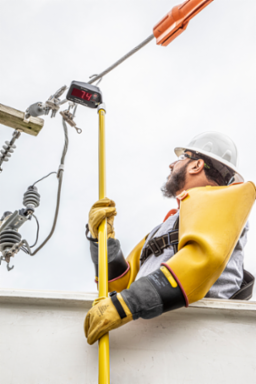

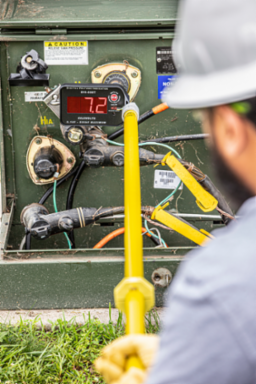

- Versatile for overhead and underground applications
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Type | Digital Voltage Indicator |
| Voltage Rating | 100V - 500kV line-to-ground |
| Display | LED display |
| Dimensions | 4.25"H x 7"W x 4.5"D (11 cm x 18 cm x 11 cm) |

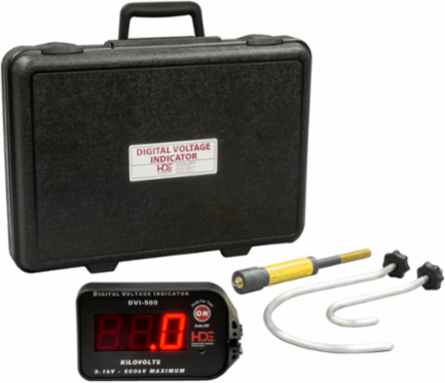

| Included | DVI-500, HP-DVI-2 2" Overhead Hook Probe, HP-DVI-6 6" Overhead Hook Probe, IEP-DVI-5 underground bushing probe, CS-DVI plastic case |
| Sub Brand | HDE |
|---|---|
| Model | DVI-500 |
| Accuracy | Laboratory calibrated to +/-3%. Typical overhead line in compact overhead three phase +/-10%. Other applications up to +/-25% |
| Operating Temperature | -20°F to +140°F (-29°C to +60°C) |
| Frequency Rating | AC 60Hz (50Hz model available) |
