Greenlee DVI-500T/K01 -500T Digital Voltage Indicator 500kV, Overhead/Underground Kit, LED Display
- MPN: DVI-500T/K01
- UPC: 783310628279
- PPN: GRN-DVI-500T/K01
- UNSPSC: 41113637
CAD
$3307.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
-500T Digital Voltage Indicator 500kV, Overhead/Underground Kit, LED Display
Features
- Measures voltage up to 500kv line-to-ground
- Voltage readout distinguishes between nominal and induced voltages
- Audible indication when voltage is detected
- Test Point mode
- Auto-shutoff and low battery indication features

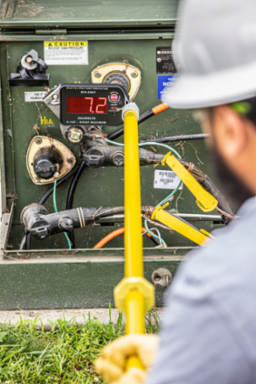

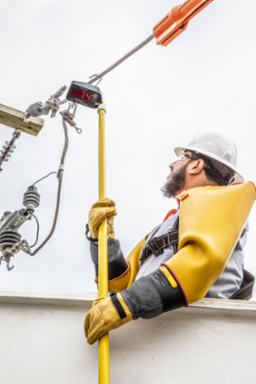

- Versatile for overhead and underground applications
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Type
- Digital Voltage Indicator
- Voltage Rating
- 100V - 500kV line-to-ground
- Display
- LED display
- Dimensions
- 4.25"H x 7"W x 4.5"D (11 cm x 18 cm x 11 cm)
- Included

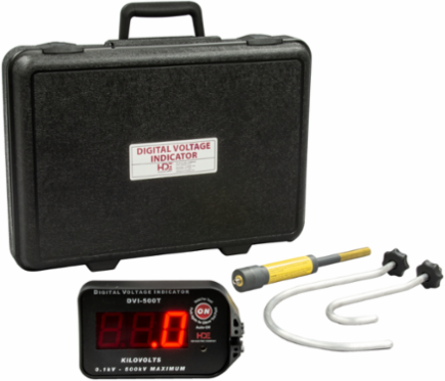

- DVI-500, HP-DVI-2 2" Overhead Hook Probe, HP-DVI-6 6" Overhead Hook Probe, IEP-DVI-5 underground bushing probe, CS-DVI plastic case
Sub BrandHDE
ModelDVI-500T
AccuracyLaboratory calibrated to +/-3%. Typical overhead line in compact overhead three phase +/-10%. Other applications up to +/-25%
Operating Temperature-20°F to +140°F (-29°C to +60°C)
Frequency RatingAC 60Hz (50Hz model available)
