Greenlee DVM-80UVM DigiVolt Digital Voltmeter 80kV, LCD Display, Auto-ranging, 5 Inch W x 4.25 Inch L x 1.38 Inch H
- MPN: DVM-80UVM
- UPC: 783310628293
- PPN: GRN-DVM-80UVM
- UNSPSC: 41113637
CAD
$4184.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
DigiVolt Digital Voltmeter 80kV, LCD Display, Auto-ranging, 5 Inch W x 4.25 Inch L x 1.38 Inch H
Features
- Measures voltage and performs phasing operations from 50V to 40kV and up to 80kV with add-on resistors
- Provides consistent high accuracy voltage measurements – within 1% of reading
- Auto-ranging – no settings required
- Capacitive Test Point and Peak Hold modes
- Auto-shutoff and low battery indicator features
- Versatile for overhead and underground applications
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Type | Voltmeter |
| Voltage Rating | 5V - 40kV up to 80kV with add-on resistors |
| Display | LCD indicates 3.5 digits |
| Dimensions | 5" W x 4.25" L x 1.38" H (13 cm x 11 cm x 3.5 cm) |

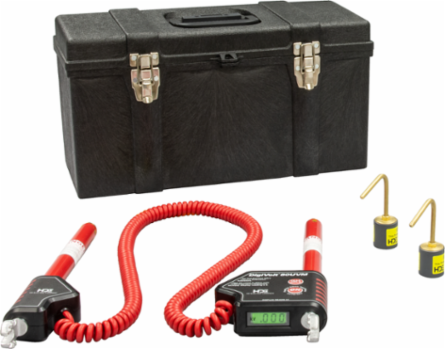

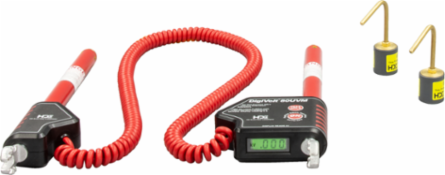

| Included | DVM-80UVM Voltmeter, 025-OLPS-5 Overhead Brass Hook Probes (2), CS-DVM Case |
| Sub Brand | HDE |
|---|---|
| Model | DVM-80UVM |
| Accuracy | Within 1% of reading +/- 3 counts (line-to-ground and line-to-line measurements); Within 2% of reading +/- 3 counts (line-to-ground & line-to-line measurements) with add-on resistors |
| Operating Temperature | -20°F to +140°F (–29°C to +60°C) |
| Frequency Rating | 25 - 1000Hz AC/DC |
Regulations
| REACH Compliant | Yes |
|---|
