Greenlee DDPM-40S Double Vision Wireless Phasing Meter 5V-43kV, LED Display, Voltmeter
- MPN: DDPM-40S
- UPC: 783310042914
- PPN: GRN-DDPM-40S
- UNSPSC: 41113637
CAD
$4025.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Double Vision Wireless Phasing Meter 5V-43kV, LED Display, Voltmeter
Features
- Measures voltage from 5V to 43kV line-to-line

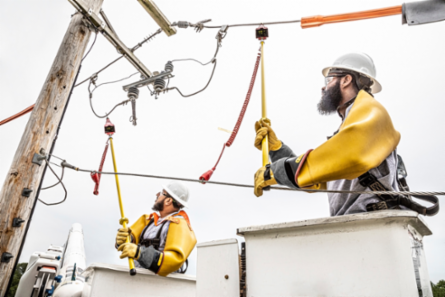

- Can be used individually as voltmeters or together for phasing operations up to 100 ft. (30m) apart
- Clear indication of phase angle
- Two LED displays are automatically synchronized during phasing operations

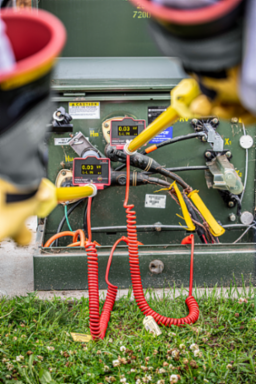

- Versatile for overhead and underground applications
- Capacitive Test Point and Peak Hold modes
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Type
- Voltmeter
- Voltage Rating
- 5V - 43kV line-to-line, 5V - 25kV line-to-ground
- Display
- LED display with 0.7" numeral height. Displays 3 digits
- Dimensions
- 14" L x 4.1" H x 4.6" W (36 cm x 10 cm x 12 cm) without probes
- Phase Indication
- Phase Angle
Sub BrandHDE
ModelDDPM-40
AccuracyWithin 1% of reading +/- 3 counts (line-to-ground & line-to-line measurements)
Operating Temperature-20°F to +120°F (-29°C to +49°C)
Frequency Rating25 - 1000Hz AC/DC

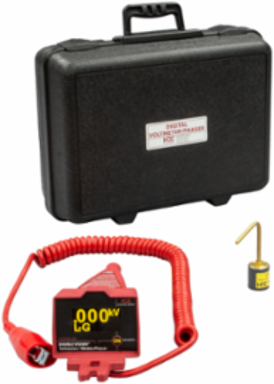

IncludedDDPM-40, (1) 025-OLPS-5 Overhead Brass Hook Probes, CS-SVM Case
Regulations
- REACH Compliant
- Yes
