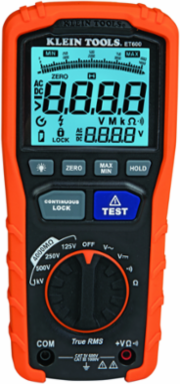

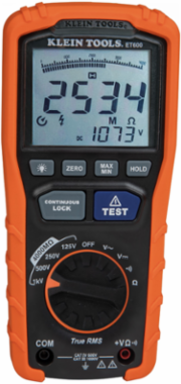

Klein Tools ET600 Insulation Resistance Tester, 1000V AC/DC, 4000MΩ, CAT IV 600V Rating
- MPN: ET600
- UPC: 092644692420
- PPN: KLT-ET600
- UNSPSC: 41113628
CAD
$241.52
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The ET600 is a multi-function Megohmmeter capable of producing 125V, 250V, 500V, and 1000V test voltages for insulation resistance measurements up to 4000MΩ. Also tests AC/DC voltages up to 1000V with automatic ranging True RMS technology. Convenient lock function and built-in stand for hands free operation. Dual-function backlit display monitors process.
Features

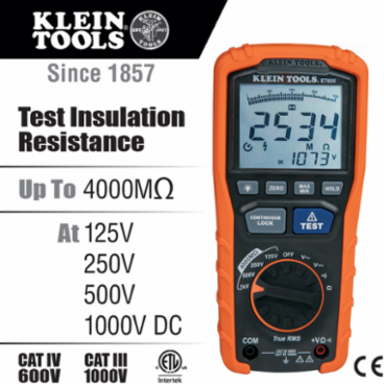

- Voltage Tester tests insulation resistance up to 4000MΩ at 125V, 250V, 500V, and 1000V DC
- Megohmmeter with test and lock buttons for simple insulation testing
- Warning alarm and high voltage icon for detection of voltage
- Measures up to 1000V AC/DC, resistance, and continuity
- Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy

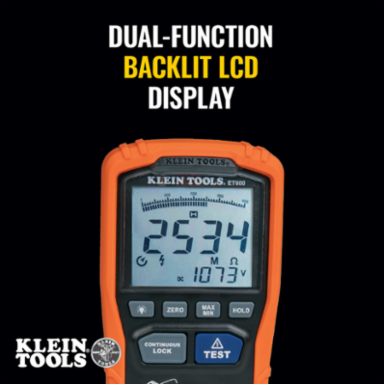

- Backlit display with bar graph, Auto-power off, High Voltage, Max/Min, and Hold icons
- Low battery indicator with easily replaceable battery and fuse

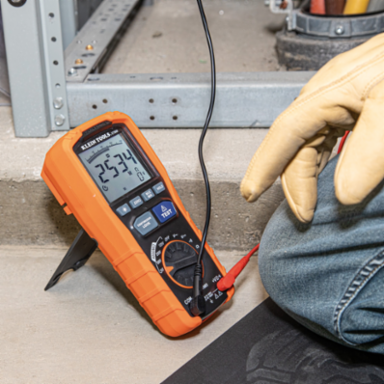

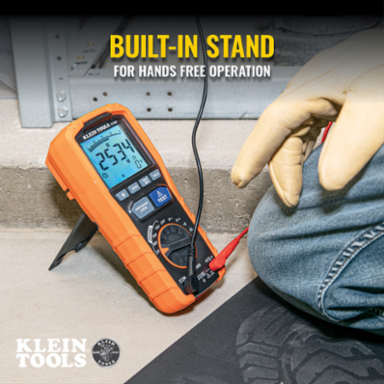

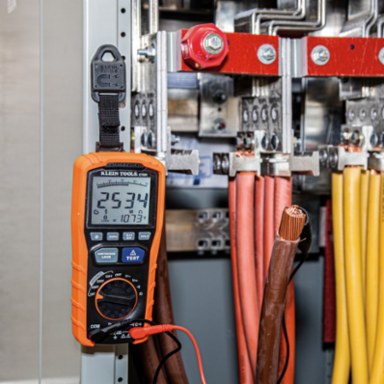

- Built-in stand and optional magnetic hanger for hands free operation
- Test verification of conformity to EN61557-1,-2,-4
- CAT IV 600V and CAT III 1000V safety rating
- Includes Right Angle Test Leads and Heavy-Duty Alligator Clip Test Leads
- Lock Button for Insulation Resistance Testing
Documentation & Downloads
Specifications
Key Specifications
- Material
- ABS, Polycarbonate, Electrical Components
- Included

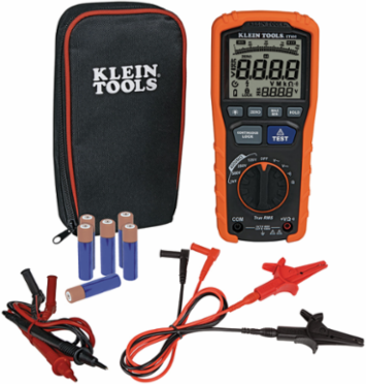

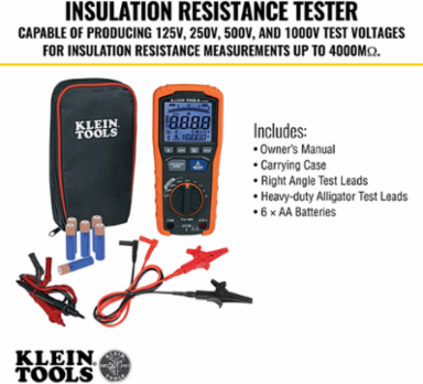

- Tester; CAT III/CAT IV Safety Rated Test Leads; Heavy-duty Alligator Clip Test Leads; Batteries; Carrying Case; Instruction Manual
- Ohms
- 400kΩ Resistance
- Standard
- CAT IV 600V/CAT III 1000V, EN61557-1, EN61557-2, EN61557-4
- Application
- Installation, Troubleshooting, and Preventive Maintenance of Electrical Wiring and Electrical Equipment, Measures 1000V AC/DC, Resistance, and Continuity
- Batteries
- 6 x AA
- Overall Length
- 7.93 Inch (20.1 cm)
- Height
- 2.4200 in
- Depth
- 7.9400 in
ColorOrange/Black
Display4000 Count LCD
Voltage125V, 250V, 500V, and 1000V DC; 1000V AC/DC
TypeInsulation Resistance Tester
FunctionsInsulation Resistance, Voltage AC/DC, Resistance, and Continuity
Overall Width3.59 Inch (9.1 cm)
Overall Height5.9 cm (2.32 Inch)
Width3.5900 in
Weight1.0620 lbs
