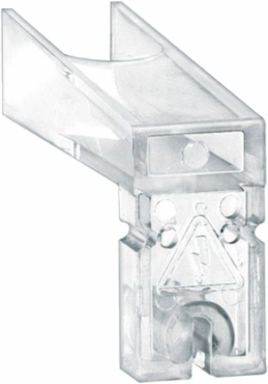

Schneider Electric VLSC1P2 TeSys VLS Disconnect Switch Terminal Covers, Set of 2, 1.46 Inch Tall

MPN: VLSC1P2
PPN: SCH-VLSC1P2

$35.06

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This protective terminal cover is for the 4th pole adder module. This protective cover can be added to VLS1P063R2S, VLS3P080R2S, VLS2P100R2S, VLS1P125R2S or VLS1P125R2E fourth pole adder module. This protective cover can also be added to VLS1P063D2S, VLS3P080D2S, VLS2P100D2S, VLS1P125D2S or VLS1P125D2E fourth pole adder module. Each package has two of these terminal protective covers. This protective terminal cover is 1.46 inches tall, 0.91 inches wide and 1.81 inches deep. The switch weighs 0.03 lbs. This protective cover is cULus Listed and meets IEC 60947-3 requirements.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Italy

Depth	46 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Traceability	No
Weee Scope	Out
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Number Of Poles	1P
Product Or Component Type	terminal cover
Range	TeSys
Sustainable Packaging	No
Width Nominal	23 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	3926909985

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Local Publishable Date	2026-06-27
Stocking Flag	Y
Serviceability	No
Field Service Division	PPIBS
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1943
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Short Name	VLSC
Fixing Mode	clipped
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quantity Per Set	set of 2
Returnability	No
Height Nominal	37 mm
Accessory / Separate Part Category	protection accessory
Package Weight(Lbs)	12.000 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
