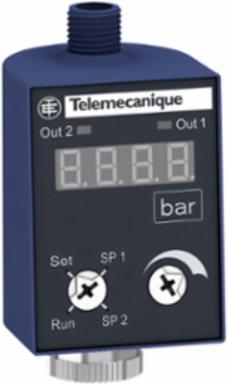

Telemecanique Sensors ZMLPA2N0SH Electronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 2 NPN, hysteresis, M12
- MPN: ZMLPA2N0SH
- PPN: TES-ZMLPA2N0SH
CAD
$292.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 2 NPN, hysteresis, M12
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- OsiSense XM
- Device Short Name
- ZMLP
Product Or Component Typeelectronic pressure sensors
Complementary
- Display Accuracy
- <= 1 % of the measuring range
- Height
- 77 mm
- Type Of Output Signal
- discrete
- Maximum Voltage Drop
- 2 V
- Response Time
- 300 ms
- Mechanical Durability
- 10000000 cycles
- Housing Material
- PBT Valox
- Measurement Accuracy
- <= 1 % of the measuring range
- Maximum Switching Current
- 200 mA
- Width
- 41 mm
- Front Material
- polyester
- Depth
- 42 mm
- Adjustable Range Of Switching Point On Rising Pressure
- 5-98 % of selected display range
- Net Weight
- 0.103 kg
- Response Time On Output
- <= 3 ms discrete output
Electrical Connectionfemale connector M12, 2 pins || male connector M12, 4 pins
Accuracy<= - 0.1 % of the measuring range
Maximum Delay First Up100 ms
Switching Functionhysteresis
Local Signallinglight ON when switch is actuated 2 LEDs yellow)
Display Range-14.5...6000
Operating Positionany position
Protection Typereverse polarity || short-circuit protection || overload protection || overvoltage protection
MarkingCE
Display Type4 digits 7 segments
[Uimp] Rated Impulse Withstand Voltage0.5 kV DC
Minimum Differential Travel10 % of selected display range
[Us] Rated Supply Voltage24 V DC SELV 17-33 V)
Current Consumption<= 50 mA
Discrete Output Typesolid state NPN, 2 NO/NC programmable
Offer Sustainability
- Circularity Profile
- ENVEOLI1401011EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP1401011EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- EAC || cULus
- Ambient Air Temperature For Storage
- -30-80 °C
- Electromagnetic Compatibility
- immunity to conducted RF disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-6 || surge immunity test 1 kV EN/IEC 61000-4-5 || electrical fast transient/burst immunity test 2 kV EN/IEC 61000-4-4 || susceptibility to electromagnetic fields 10 V/m 80...2000 MHz EN/IEC 61000-4-3 || electrostatic discharge immunity test 8 kV air, 4 kV contact EN/IEC 61000-4-2
- Vibration Resistance
- 5 gn 10-2000 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Operation-25-70 °C
StandardsEN/IEC 61000-6-2 || UL 508 || EN/IEC 61000-6-4
Shock Resistance25 gn EN/IEC 60068-2-27
Ip Degree Of ProtectionIP67 EN/IEC 60529 || IP65 EN/IEC 60529 || IP69K DIN 40050
