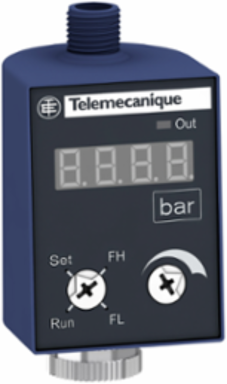

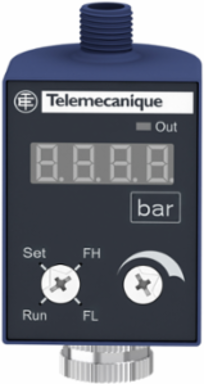

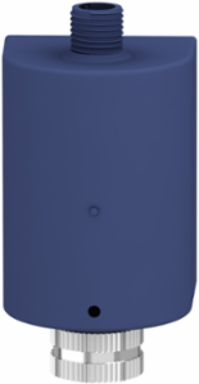

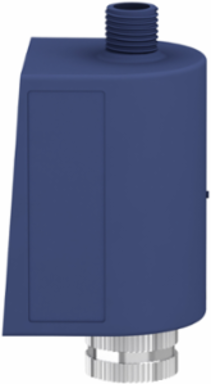

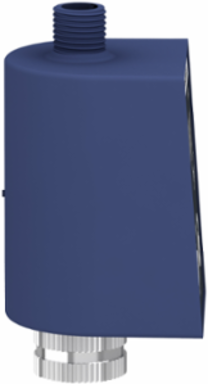

Telemecanique Sensors ZMLPA1P2SW Electronic pressure sensors, Pressure sensors XM, Display & switch ZMLP, 24 VDC, 4...20 mA, PNP, window, M12
- MPN: ZMLPA1P2SW
- PPN: TES-ZMLPA1P2SW
- UNSPSC: 39122210
CAD
$292.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This ZML electronic pressure switch has a 4 digit 7-segment display, window switching mode. It has a pressure rating of -1 bar. It has a supply voltage of 24V DC, 2 x solid state outputs (pnp) and an analog ouput of 4 to 20mA. It provides a simple reading of current value and threshold with clear LED display. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- OsiSense XM
- Device Short Name
- ZMLP
Product Or Component Typeelectronic pressure sensors
Complementary
- Display Accuracy
- <= 1 % of the measuring range
- Electrical Connection
- female connector M12, 2 pins || male connector M12, 4 pins
- Accuracy
- <= - 0.1 % of the measuring range
- Maximum Voltage Drop
- 2 V
- Display Range
- -14.5...6000
- Marking
- CE
- Current Consumption
- <= 50 mA
- Response Time
- 300 ms
- Mechanical Durability
- 10000000 cycles
- Operating Position
- any position
- Protection Type
- overvoltage protection || reverse polarity || short-circuit protection || overload protection
- Display Type
- 4 digits 7 segments
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV DC
- Minimum Differential Travel
- 3 % of selected display range
- [Us] Rated Supply Voltage
- 24 V DC SELV 17-33 V)
- Response Time On Output
- <= 3 ms analog output || <= 3 ms discrete output
Adjustable Range Of Switching Point On Falling Pressure2-95 % of selected display range
Height77 mm
Type Of Output Signalanalogue + discrete
Switching Functionwindow
Maximum Switching Current200 mA
Net Weight0.103 kg
Maximum Delay First Up100 ms
Local Signallingfor light ON when switch is actuated 1 LED (yellow)
Housing MaterialPBT Valox
Measurement Accuracy<= 1 % of the measuring range
Width41 mm
Front Materialpolyester
Depth42 mm
Adjustable Range Of Switching Point On Rising Pressure5-98 % of selected display range
Analogue Output Function4...20 mA
Discrete Output Typesolid state PNP, NO/NC programmable
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1401011EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1401011EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- cULus || EAC
- Standards
- EN/IEC 61000-6-2 || UL 508 || EN/IEC 61000-6-4
- Shock Resistance
- 25 gn EN/IEC 60068-2-27
- Ip Degree Of Protection
- IP67 conforming to EN/IEC 60529 || IP65 conforming to EN/IEC 60529 || IP69K conforming to DIN 40050
Ambient Air Temperature For Operation-25-70 °C
Electromagnetic Compatibilityimmunity to conducted RF disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-6 || surge immunity test 1 kV EN/IEC 61000-4-5 || electrical fast transient/burst immunity test 2 kV EN/IEC 61000-4-4 || susceptibility to electromagnetic fields 10 V/m 80...2000 MHz EN/IEC 61000-4-3 || electrostatic discharge immunity test 8 kV air, 4 kV contact EN/IEC 61000-4-2
Vibration Resistance5 gn 10-2000 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage-30-80 °C
