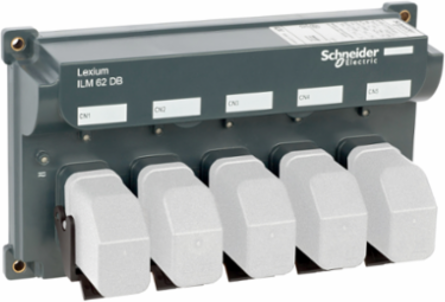

Schneider Electric ILM62DB4A000 Distribution Box 1 Input 4 Outputs, 20 A, IP65, Polycarbonate

MPN: ILM62DB4A000
PPN: SCH-ILM62DB4A000
UNSPSC: 26111515

$1352.57

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric Distribution Box ILM62DB4A000 is expertly designed to efficiently manage electrical distribution with a single input and four outputs, ensuring optimal connectivity and functionality for your automation and control applications. Rated at 20 A and featuring an IP65 protection level, this robust polycarbonate box is built to withstand dust and water, making it suitable for demanding environments. Ideal for motion control systems, its durable construction and strategic design enhance reliability, contributing to the seamless operation and longevity of your electrical systems.

Features

Natural convection cooling
Class 3 conforming to IEC 61800-5-1
The distribution block with SERCOS III physical interface at 100Mbit/s transmission rate.
It is an IP65 rated product.
The box is made of polycarbonate. Its dimensions are 230mm (width) x 151.4mm (depth) x 94mm (height). It weighs 0.85kg.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany
Depth	151.4 mm

Weight	1534 g

Complementary Attributes

Uc Control Circuit Voltage	24 V DC - 20...25 %)

Us Rated Supply Voltage	250...700 V

Important Information Attributes

Persona Type Ids	EU, OM
Carbon Footprint Of The Distribution Phase A4	0.19792, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0056563, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	129 kg CO2 eq., 128.76
Local Publishable Date	2026-09-19
Device Type	Motion - integrated drive
Traceability	Yes
Average Life Duration	15 year(s)
Use Carbon Footprint	128.76
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1407007EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	3
Function Option	Advanced
Market Segmentation	Industrial
Device Short Name	ILM
Overvoltage Category	class 3 conforming to IEC 61800-5-1
Product Or Component Type	distribution block
Returnability	Yes
Sustainable Packaging	No
Type Of Cooling	natural convection
Data Source	referent product
Width Nominal	230 mm
Customs Code	8536904000
Warranty In Months	18
Functional Unit Description	To connect several Lexium 62 ILD with Sercos and DC bus at 1.50W for 20 years.
Functional Unit Unit	unité (unit)
Energy Consumption On Product Lifetime In Kwh	262.8

Persona Type Names	End User, Original Equipment Manufacturer
Carbon Footprint Of The End Of Life Phase C1 To C4	0.5 kg CO2 eq., 0.51613
Carbon Footprint Of The Manufacturing Phase A1 To A3	9 kg CO2 eq., 9.2945
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Manufacturing Carbon Footprint	9.2945
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	3
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Material	polycarbonate
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	PacDrive 3
Software Version	EIME v5.7.0.3
Total Lifecycle Carbon Footprint	139 kg CO2 eq.
Database Version	2016-11
Height Nominal	94 mm
Nbr. Of Units In Pkg.	1
Carbon Footprint Kg Co2 Eq Total Life Cycle	138.77
Packaging Weight In G	692.6
Functional Unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	28

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	138.77
Environmental Disclosure	ENVPEP1407007EN
Ip Degree Of Protection	IP65
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1407007EN
Pcr Version	PCR-ed3-EN-2015 04 02

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1407007EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2018-09-01
Type Of Verification For The Pep	Independent external review
