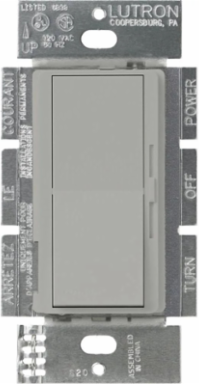

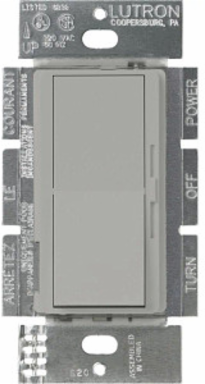

Lutron DVSTV-GR Diva 0-10V Dimmer Switch, 120-277V, Gray, Gloss Finish, Paddle Control
Lutron DVSTV-GR Diva 0-10V Dimmer Switch, 120-277V, Gray, Gloss Finish, Paddle Control
- MPN: DVSTV-GR
- UPC: 784276099592
- PPN: LUT-DVSTV-GR
- UNSPSC: 39122206
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$92.98/ EA
Description

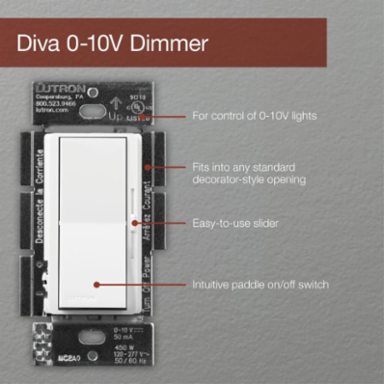

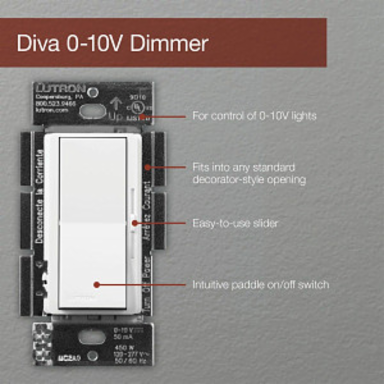

The Diva 0-10V dimmer switch is a simple solution is designed to match existing design style switches and accessories. Easily turn the lights on and off with a paddle switch, and use the slide control to adjust the lights to the perfect level. The new Diva 0 - 10-Volt dimmerswitch is a 0-10 VDC dimmer with 3-way functionality for 3rd party 0-10-Volt fixtures (LED and fluorescent), no separate power pack required. Coordinating wall plate sold separately.
Features
- For use in controlling 0-10-Volt LED drivers and/or fluorescent ballasts
- No neutral wire or power pack required
- Large paddle switch with a captive linear-slide control for a standard designer-opening wall plate
- Can be used in single pole or 3-way applications
- Easily replaces existing switch and installs in as little as 15 minutes (no neutral wire required)
- Includes (1) Diva 0-10V dimmer switch; coordinating wallplate sold separately
- Controls 0-10 V LED or fluorescent fixture loads, 50 mA max control current
- Paddle turns on/off
- Slide up to brighten, down to dim.
Specifications
Specifications
- Amperage Rating
- 8 A
- Operating Temperature, Maximum
- 104 F
- Voltage Rating
- 120 to 277
- Environmental Conditions
- Indoor use only
- Wattage
- 2216 W
- Decorative Color
- Gray
- Switch Type
- Paddle Switch
- Number of Poles
- 1
- Enclosure
- Plastic
- Insulation
- Plastic
- Connection
- Wire Leads
- Material
- Plastic/Metal
- Operating Temperature
- 32 to 104 F
ApplicationLighting Control
TypeDimmer, 3-way/single-pole
Aesthetic FinishGlossy
Operating Temperature, Minimum32 F
Frequency Rating, Maximum60 Hz
Connection TypeWire Leads
Family ColorGray
Face MaterialMetal;Plastic
Size4.69 x 2.94;119 x 75 in;mm
FinishGloss
ActuatorPaddle switch
MountingWallbox
ColorGray
