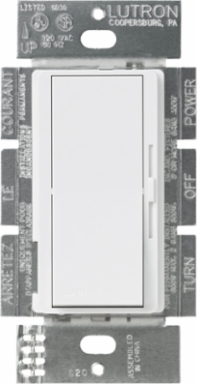

Lutron DVF-103P-WH Diva Dimmer Switch, 120V, Control 960W/8A, 3-Way, Glossy White, 4.69 x 2.94 Inch
- MPN: DVF-103P-WH
- UPC: 027557697231
- PPN: LUT-DVF-103P-WH
- UNSPSC: 39122206
CAD
$139.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Diva Dimmer Switch, 120V, Control 960W/8A, 3-Way, Glossy White, 4.69 x 2.94 Inch
Features
- Large paddle switch with a captive linear-slide dimmer for a standard designer wallplate opening
- Full family of products for most lighting sources
- Dimmers feature built-in soft-glow nightlight
- Uses standard single-pole and 3-way wiring for easy installation in any home
- Controls 8 A 3-wire LED driver or fluorescent ballast loads
- Paddle turns on/off
- Slide up to brighten, down to dim.
Documentation & Downloads
Specifications
Key Specifications
- Aesthetic Finish
- Glossy
- Connection Type
- Wire Leads
- Family Color
- White
- Number of Poles
- 1
- Operating Temperature, Minimum
- 32 F
- Type
- Dimmer, 3-way/single-pole
- Wattage
- 960 W
- Actuator
- Paddle switch
- Connection
- Wire Leads
- Finish
- Gloss
- Material
- Plastic/Metal
- Operating Temperature
- 32 to 104 F
ApplicationLighting Control
Decorative ColorWhite
Frequency Rating, Maximum60 Hz
Operating Temperature, Maximum104 F
Switch TypePaddle Switch
Voltage Rating120
Face MaterialMetal;Plastic
ColorWhite
EnclosurePlastic
InsulationPlastic
MountingWallbox
Size4.69 x 2.94;119 x 75 in;mm
