Lutron DVSTV-WH Diva 0-10V Dimmer Switch, 3-Way/Single-Pole, 8A, Plastic/Metal, White

Diva 0-10V Dimmer Switch, 3-Way/Single-Pole, 8A, Plastic/Metal, White
Diva 0-10V Dimmer Switch, 3-Way/Single-Pole, 8A, Plastic/Metal, White
Diva 0-10V Dimmer Switch, 3-Way/Single-Pole, 8A, Plastic/Metal, White
Diva 0-10V Dimmer Switch, 3-Way/Single-Pole, 8A, Plastic/Metal, White
Diva 0-10V Dimmer Switch, 3-Way/Single-Pole, 8A, Plastic/Metal, White
  • MPN: DVSTV-WH
  • UPC: 784276099622
  • PPN: LUT-DVSTV-WH
  • UNSPSC: 39122206

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$92.98/ EA

Description

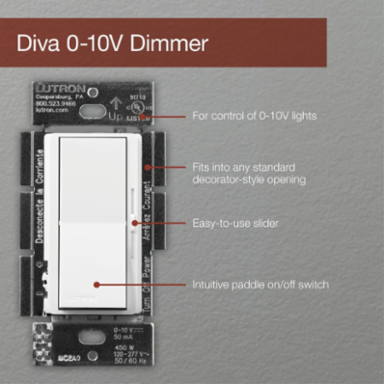

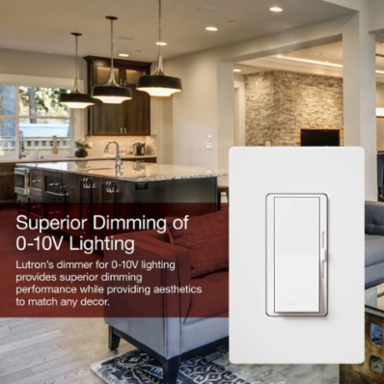

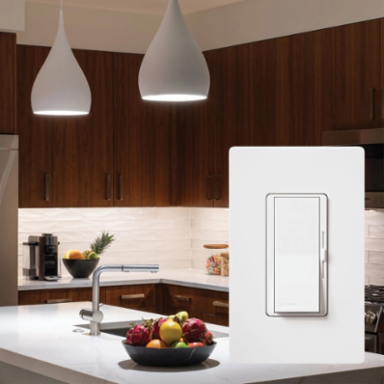

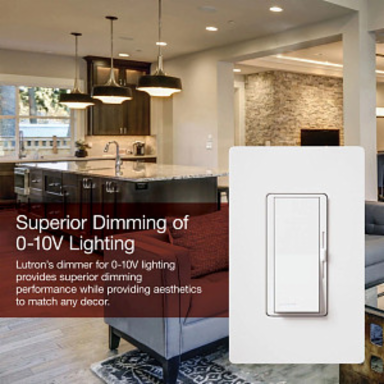

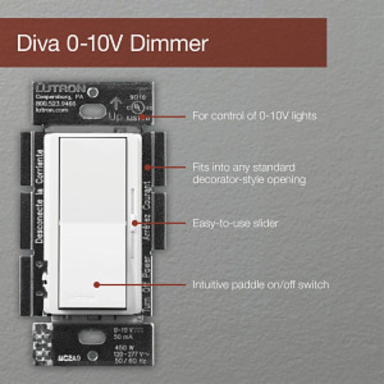

The Diva 0-10V dimmer switch is a simple solution is designed to match existing design style switches and accessories. Easily turn the lights on and off with a paddle switch, and use the slide control to adjust the lights to the perfect level. The new Diva 0 - 10-Volt dimmerswitch is a 0-10 VDC dimmer with 3-way functionality for 3rd party 0-10-Volt fixtures (LED and fluorescent), no separate power pack required. Coordinating wall plate sold separately.

Features

  • For use in controlling 0-10-Volt LED drivers and/or fluorescent ballasts
  • No neutral wire or power pack required

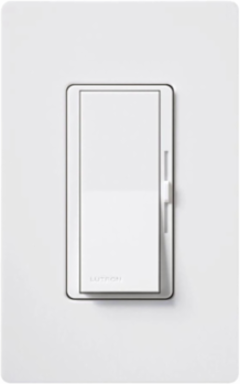

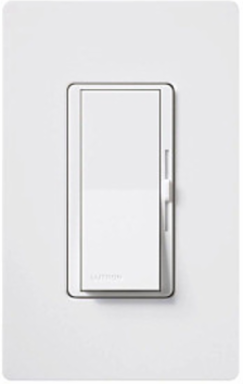

  • Large paddle switch with a captive linear-slide control for a standard designer-opening wall plate
  • Can be used in single pole or 3-way applications
  • Easily replaces existing switch and installs in as little as 15 minutes (no neutral wire required)

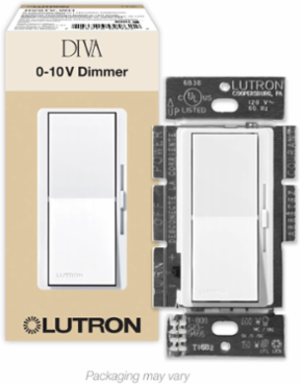

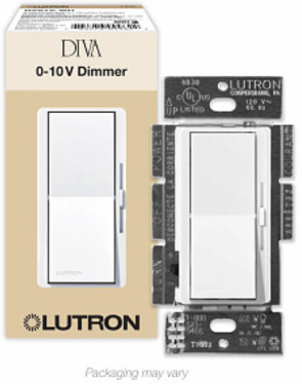

  • Includes (1) Diva 0-10V dimmer switch; coordinating wallplate sold separately
  • Controls 0-10 V LED or fluorescent fixture loads, 50 mA max control current
  • Paddle turns on/off
  • Slide up to brighten, down to dim.

Specifications

Specifications

Aesthetic Finish
Glossy
Application
Lighting Control
Decorative Color
White
Family Color
White
Number of Poles
1
Operating Temperature, Minimum
32 F
Type
Dimmer, 3-way/single-pole
Wattage
2216 W
Actuator
Paddle switch
Connection
Wire Leads
Finish
Gloss
Material
Plastic/Metal
Operating Temperature
32 to 104 F
Amperage Rating8 A
Connection TypeWire Leads
Environmental ConditionsIndoor use only
Frequency Rating, Maximum60 Hz
Operating Temperature, Maximum104 F
Switch TypePaddle Switch
Voltage Rating120 to 277
Face MaterialMetal;Plastic
ColorWhite
EnclosurePlastic
InsulationPlastic
MountingWallbox
Size4.69 x 2.94;119 x 75 in;mm
