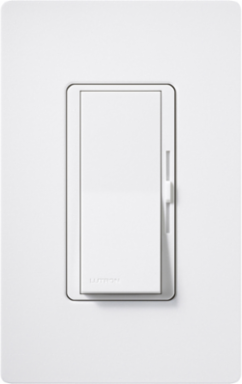

Lutron DVSCSTV-SW Diva 0-10V Dimmer Switch, 8A, 120-277V, Paddle Switch, Snow Finish
Lutron DVSCSTV-SW Diva 0-10V Dimmer Switch, 8A, 120-277V, Paddle Switch, Snow Finish
- MPN: DVSCSTV-SW
- UPC: 784276099790
- PPN: LUT-DVSCSTV-SW
- UNSPSC: 39122206
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$101.98/ EA
Description
The Diva 0-10V dimmer switch is a simple solution is designed to match existing design style switches and accessories. Easily turn the lights on and off with a paddle switch, and use the slide control to adjust the lights to the perfect level. The new Diva 0 - 10-Volt dimmerswitch is a 0-10 VDC dimmer with 3-way functionality for 3rd party 0-10-Volt fixtures (LED and fluorescent), no separate power pack required. Coordinating wall plate sold separately.
Features
- For use in controlling 0-10-Volt LED drivers and/or fluorescent ballasts
- No neutral wire or power pack required
- Large paddle switch with a captive linear-slide control for a standard designer-opening wall plate
- Can be used in single pole or 3-way applications
- Easily replaces existing switch and installs in as little as 15 minutes (no neutral wire required)
- Includes (1) Diva 0-10V dimmer switch; coordinating wallplate sold separately
- Controls 0-10 V LED or fluorescent fixture loads, 50 mA max control current
- Paddle turns on/off
- Slide up to brighten, down to dim.
Specifications
Specifications
- Environmental Conditions
- Indoor use only
- Aesthetic Finish
- Satin
- Operating Temperature, Maximum
- 104 F
- Voltage Rating
- 120 to 277
- Wattage
- 2216 W
- Number of Poles
- 1
- Decorative Color
- Snow
- Connection Type
- Wire Leads
- Enclosure
- Plastic
- Insulation
- Plastic
- Material
- Plastic/Metal
- Color
- Snow
- Connection
- Wire Leads
Operating Temperature, Minimum32 F
ApplicationLighting Control
TypeDimmer, 3-way/single-pole
Amperage Rating8 A
Switch TypePaddle Switch
Frequency Rating, Maximum60 Hz
Family ColorWhite
Face MaterialMetal;Plastic
FinishSatin
Size4.69 x 2.94;119 x 75 in;mm
MountingWallbox
Operating Temperature32 to 104 F
ActuatorPaddle switch
