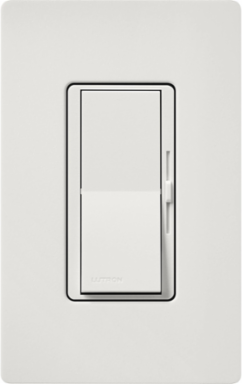

Lutron DVSCCL-253P-LG Diva satin dimmer for 250W CFL/LED, 600W inc/hal, or Lutron Hi-Lume A-Series LTE LED Driver in lunar gray
Lutron DVSCCL-253P-LG Diva satin dimmer for 250W CFL/LED, 600W inc/hal, or Lutron Hi-Lume A-Series LTE LED Driver in lunar gray
- MPN: DVSCCL-253P-LG
- UPC: 784276289269
- PPN: LUT-DVSCCL-253P-LG
- UNSPSC: 39122206
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$84.11/ EA
Description
The Lutron Diva 250W LED+ dimmer switch includes the most advanced technology for superior dimming for up to 250W of dimmable LED, 600W of Incandescent/Halogen, or 350W Lutron Hi-Lume A-Series LTE LED Driver. The Diva LED+ dimmer switch features a large paddle switch to turn the lights ON/OFF and smooth and linear slider to dim or brighten the lights. Set a favorite preset level with the slider before turning on. The Diva 250W LED+ Dimmer switch also features an easy low-end trim adjustment directly on the dimmer, which eliminates complicated programming or having to turn the power off. Available in 20+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Features
- Includes (1) Diva 250W LED+ Dimmer Switch; Satin Finish
- Rated for up to 250W LED or 600W Incandescent/Halogen
- No Neutral Required; 120v
- Single Pole or 3-Way compatible; Wire lead installation
- Minimum load requires 1 compatible LED or 10W Incandescent/Halogen

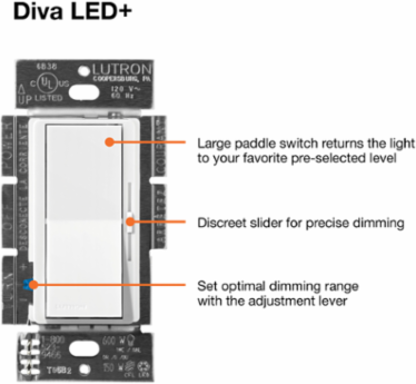

- Easy low-end trim adjustment lever; No complicated programming or turning off power to set
- Rocker switch turns lights on/off to favorite preset light level
- Linear slider dims and brightens the lights
- Available in 20+ colors
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
- Controls 250 W dimmable LED/CFL (screw-base), 600 W incandescent/halogen or 350 W Hi-Lume 1 percent 2-wire LED driver loads
- Paddle turns on/off
- Slide up to brighten, down to dim
- Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
Specifications
Specifications
- Aesthetic Finish
- Satin
- Connection Type
- Wire Leads
- Environmental Conditions
- Indoor use only
- Frequency Rating, Maximum
- 60 Hz
- Operating Temperature, Maximum
- 104 F
- Switch Type
- Paddle Switch
- Voltage Rating
- 120
- Face Material
- Metal;Plastic
- Color
- Lunar Gray
- Enclosure
- Plastic
- Insulation
- Plastic
- Mounting
- Wallbox
- Size

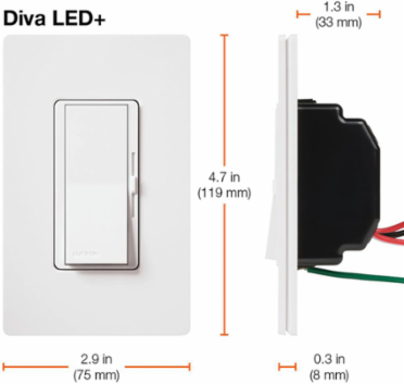

- 4.69 x 2.94;119 x 75 in;mm
ApplicationLighting Control
Decorative ColorLunar Gray
Family ColorGray
Number of Poles1
Operating Temperature, Minimum32 F
TypeDimmer, 3-way/single-pole
Wattage600 W
ActuatorPaddle switch
ConnectionWire Leads
FinishSatin
MaterialPlastic/Metal
Operating Temperature32 to 104 F
