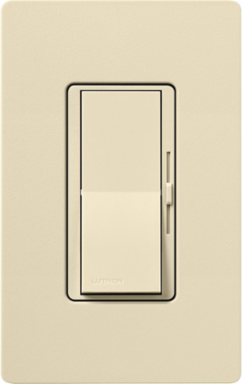

Lutron DVSCCL-253P-SD Diva 250W LED+ Dimmer Switch, Satin Finish, Paddle Switch Control
Lutron DVSCCL-253P-SD Diva 250W LED+ Dimmer Switch, Satin Finish, Paddle Switch Control
- MPN: DVSCCL-253P-SD
- UPC: 784276289313
- PPN: LUT-DVSCCL-253P-SD
- UNSPSC: 39122206
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$84.11/ EA
Description

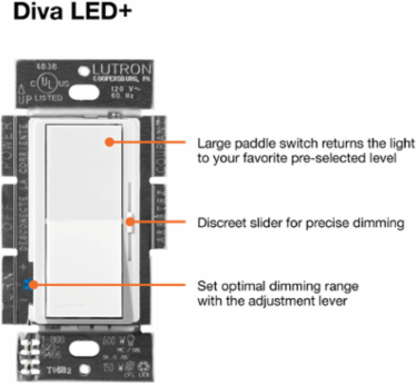

The Lutron Diva 250W LED+ dimmer switch includes the most advanced technology for superior dimming for up to 250W of dimmable LED, 600W of Incandescent/Halogen, or 350W Lutron Hi-Lume A-Series LTE LED Driver. The Diva LED+ dimmer switch features a large paddle switch to turn the lights ON/OFF and smooth and linear slider to dim or brighten the lights. Set a favorite preset level with the slider before turning on. The Diva 250W LED+ Dimmer switch also features an easy low-end trim adjustment directly on the dimmer, which eliminates complicated programming or having to turn the power off. Available in 20+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Features
- Includes (1) Diva 250W LED+ Dimmer Switch; Satin Finish
- Rated for up to 250W LED or 600W Incandescent/Halogen
- No Neutral Required; 120v
- Single Pole or 3-Way compatible; Wire lead installation
- Minimum load requires 1 compatible LED or 10W Incandescent/Halogen
- Easy low-end trim adjustment lever; No complicated programming or turning off power to set
- Rocker switch turns lights on/off to favorite preset light level
- Linear slider dims and brightens the lights
- Available in 20+ colors
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
- Controls 250 W dimmable LED/CFL (screw-base), 600 W incandescent/halogen or 350 W Hi-Lume 1 percent 2-wire LED driver loads
- Paddle turns on/off
- Slide up to brighten, down to dim
- Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
Specifications
Specifications
- Operating Temperature, Maximum
- 104 F
- Voltage Rating
- 120
- Application
- Lighting Control
- Operating Temperature, Minimum
- 32 F
- Decorative Color
- Sand
- Number of Poles
- 1
- Family Color
- Beige
- Face Material
- Metal;Plastic
- Size

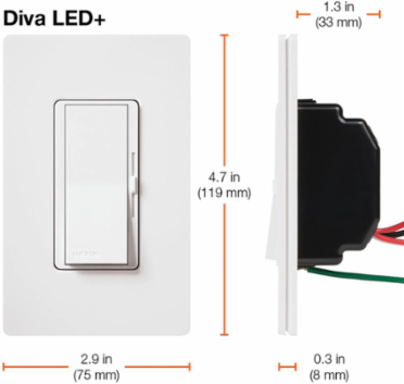

- 4.69 x 2.94;119 x 75 in;mm
- Finish
- Satin
- Material
- Plastic/Metal
- Connection
- Wire Leads
- Mounting
- Wallbox
TypeDimmer, 3-way/single-pole
Aesthetic FinishSatin
Environmental ConditionsIndoor use only
Wattage600 W
Switch TypePaddle Switch
Frequency Rating, Maximum60 Hz
Connection TypeWire Leads
InsulationPlastic
EnclosurePlastic
Operating Temperature32 to 104 F
ColorSand
ActuatorPaddle switch
