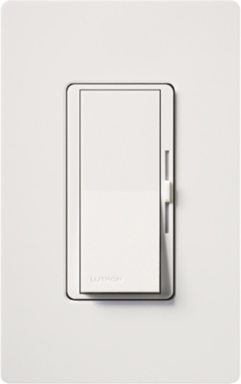

Lutron DVRP-253P-WH DIVA Dimmer Switch 250W LED 500W ELV - Glossy Finish, 3-Way/Single-Pole, White


Lutron DVRP-253P-WH DIVA Dimmer Switch 250W LED 500W ELV - Glossy Finish, 3-Way/Single-Pole, White
- MPN: DVRP-253P-WH
- UPC: 784276221665
- PPN: LUT-DVRP-253P-WH
- UNSPSC: 39122206
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$133.80/ EA
Features
- On/off paddle switch with a linear-slide dimmer for a standard designer wallplate opening.
- UL Listed to control: Dimmable LED with integrated driver; Dimmable compact fluorescent (CFL) with integrated ballast; Incandescent/Halogen; Electronic Low-Voltage (ELV) transformers
- Reverse-phase type control. Neutral wire connection is required in the wallbox.
- 100% factory tested
- Controls 120 V/250 W LED/CFL, and 500 W Inc and ELV loads
- Paddle turns on/off
- Slide up to brighten, down to dim.
Specifications
Specifications
- Aesthetic Finish
- Glossy
- Operating Temperature, Maximum
- 104 F
- Type
- Dimmer, reverse-phase, 3-way/single-pole
- Application
- Lighting Control
- Number of Poles
- 1
- Switch Type
- Paddle Switch
- Connection Type
- Wire Leads
- Wattage
- 250/500 W
- Insulation
- Plastic
- Size
- 4.69 x 2.94;119 x 75 in;mm
- Mounting
- Wallbox
- Connection
- Wire Leads
- Actuator
- Paddle switch
Environmental ConditionsIndoor use only
Operating Temperature, Minimum32 F
Voltage Rating120
Family ColorWhite
Decorative ColorWhite
Frequency Rating, Maximum60 Hz
Face MaterialMetal;Plastic
FinishGloss
EnclosurePlastic
MaterialPlastic/Metal
Operating Temperature32 to 104 F
ColorWhite
