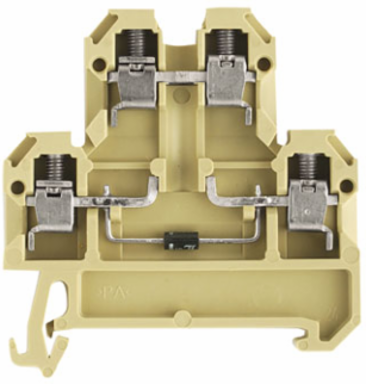

Weidmuller 0539060000 DK 4/35 LD 24VDC CSA A1
- MPN: 0539060000
- PPN: WDM-0539060000
CAD
$15.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SAK Series, Double-tier terminal, Rated cross-section: 4 mm², Screw connection
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CSA, EAC
ROHSConform
Display Element
- Current
- 5 mA
- Operating voltage for display, max.
- 24 V
- Type of voltage for indicator
- DC
Indicator elementred
Operating voltage for display, min.24 V
Dimensions And Weights
- Width
- 6 mm
- Height
- 50 mm
- Depth
- 52.5 mm
- Net weight
- 12 g
Width (inches)0.236 inch
Height (inches)1.969 inch
Depth (inches)2.067 inch
Dimensions
- TS 32 offset
- 20 mm
TS 35 offset27 mm
Csa Rating Data
- Certificate No. (CSA)
- 12400-130
- Voltage size C (CSA)
- 24 V
- Wire cross section min. (CSA)
- 22 AWG
Current size C (CSA)10 A
Wire cross section max. (CSA)12 AWG
Additional Technical Data
- Number of similar terminals
- 1
- Type of mounting
- Snap-on
Open sidesright
Material Data
- Material
- PA 66
- UL 94 flammability rating
- V-2
Colourbeige / yellow
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, with LED, One end without connector
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- Yes
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels2
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 100 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 4 mm²
- Current at maximum wires
- 10 A
- Volume resistance according to IEC 60947-7-x
- 1 mΩ
- Rated impulse withstand voltage
- 1 kV
Rated voltage24 V
StandardsIEC 60947-7-1
Power loss in accordance with IEC 60947-7-x1.02 W
Pollution severity3
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.5 mm²
- Connection cross-section, stranded, max.
- 4 mm²
- Connection direction
- on side
- Number of connections
- 4
- Tightening torque, max.
- 1 Nm
- Torque level with DMS electric screwdriver
- 2
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
Clamping range, max.4 mm²
Clamping screwM 3
Connection cross-section, stranded, min.0.5 mm²
Gauge to IEC 60947-1A3
Stripping length9 mm
Tightening torque, min.0.5 Nm
Type of connectionScrew connection
Wire connection cross section AWG, min.AWG 22
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.4 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
