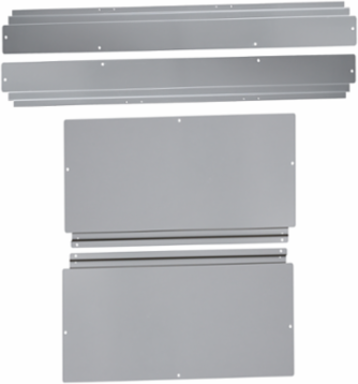

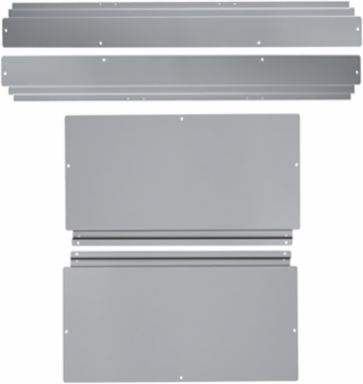

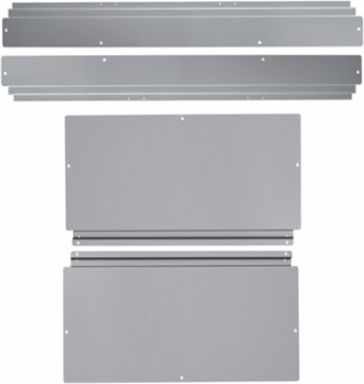

Square D HCM73TS I-Line Panelboard Trim, 4 Pieces, 32-1/4 Inch W x 73 Inch H
- MPN: HCM73TS
- UPC: 785901089148
- PPN: SCH-HCM73TS
- UNSPSC: 39121112
CAD
$686.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Square D™ I-Line Power Distribution Panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system. I-line power distribution panelboards are for use on AC or DC systems. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. This trim front kit is used with HCJ I-line distrubution panelboard and surface mounted. This product is certified to cULus & CE standards. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories (UL) Listed under File E33139. This product complys to CE & cULus standards.
Features
- This 4 piece trim front kit provides end and side covers for I-Line® HCJ or obsolete HCM panelboard interiors
- This trim front provides the frame for optional door kits
- Trim front installation requires only a screw driver
- The trim front is a component of I-Line® panelboards, a flexible option for feeding lighting and appliance panelboards
- Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Weight | 13154 g |
|---|
Important Information Attributes
| Certificate Agency | CE, cULus |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 18 kg CO2 eq., 17.59145486180851 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 65 kg CO2 eq., 64.95350409636238 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1847 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Destination | panelboard HCM 32 in 73 in 8.25 in |
| Quantity Per Set | 4 |
| Returnability | Yes |
| Sustainable Packaging | No |
| Database Version | 2024-01 |
| Height Nominal | 73 in |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free product |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Carbon Footprint Of The Distribution Phase A4 | 3.801342794058931, 4 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 0.016777065287870346, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-08-26 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | trim |
| Range Of Product | I-Line |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 86 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 32.25 in |
| Customs Code | 8538908160 |
| Silicone Free | Yes |
| Functional Unit Description | Accommodate and protect control, command and protection devices via a panelboard cover/trim with door (2184.4 mm x 241.3 mm x 1073.15 mm) , providing protection levels IP = IP30 and IK = IK07,or a reference service life of 20 years, in commercial/industrial applications |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 97 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Halogene Performance | Halogen free product |
| Mercury Free | Yes |
| Carbon Footprint | 86.36307881751769 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-10-15 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Silicon Free | Yes |
| Environmental Disclosure | ENVPEP2509036EN |
| Halogen Content Performance | Halogen free product |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2509036EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | trim |
|---|
| Range Of Product | I-Line |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
