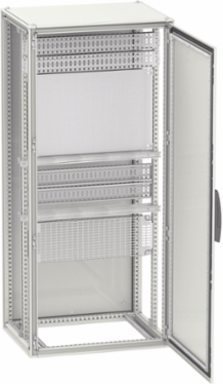

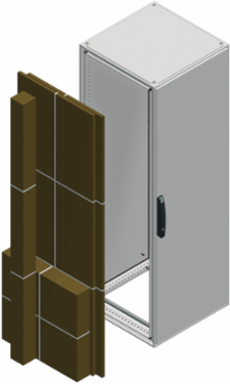

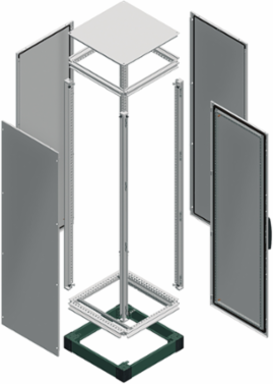

Schneider Electric NSYSFD18122D PanelSeT SF double plain doors - 1800x1200 mm
Schneider Electric NSYSFD18122D PanelSeT SF double plain doors - 1800x1200 mm
- MPN: NSYSFD18122D
- PPN: SCH-NSYSFD18122D
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1404.18/ EA
Description

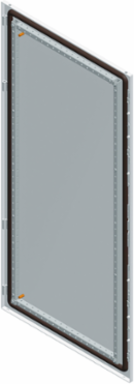

External plain door for PanelSeT SF The product is to be mounted on front of the enclosure The nominal width is 1200mm The nominal height is 1800mm The door is made of sheet steel (RAL 7035) and has a degree of IP protection IP55 Hinges left or right (120 ° opening angle) Maximum load is 60 kg/m² The door has 1 locks with 5mm double bar
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Complementary Attributes
- Maximum Load
- 60 kg/m²
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 lock with handle and 5 mm double bar insert, 1 locking bar system 4 points, 2 door, 1 blocking system, 2 reinforcement frame, 8 hinges
- Carbon Footprint Of The Distribution Phase A4
- 8.354425576, 8 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 9.623255302, 10 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-12-11
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1912
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Door Type
- external plain
- Lock Type
- lock 5 mm double bar
- Mounting Location
- front
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 309 kg CO2 eq.
- Warranty In Months
- 18
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Offer Owner Code
- 190789
- Height Nominal
- nominal: 1800 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Carbon Footprint Of The End Of Life Phase C1 To C4102 kg CO2 eq., 102.026786
Carbon Footprint Of The Manufacturing Phase A1 To A3189 kg CO2 eq., 188.5781414
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Door Opening Sidereversible 120 °)
Energy Efficiency OptimizedFalse
Materialsheet steel
Number Of Locks1
Product Or Component Typedoor
RangePanelSeT
Software Versionv5.9.4
Sustainable PackagingNo
Accessory Separate Part Categoryenclosure accessory
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Recyclability Potential, In %98
Pn1
Width Nominalnominal: 1200 mm
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 308.5826083
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- door
ETIM
- ETIM 8
- EC000747
ETIM 9EC000747
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Spain
