Greenlee DDPM-40/K01 Dual Display Wireless Phasing Meter 5V-43kV, 14" x 4.1" x 4.6" Dimensions
- MPN: DDPM-40/K01
- UPC: 783310081166
- PPN: GRN-DDPM-40/K01
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Dual Display Wireless Phasing Meter 5V-43kV, 14" x 4.1" x 4.6" Dimensions
Features
- Measures voltage from 5V to 43kV line-to-line
- Can be used individually as voltmeters or together for phasing operations up to 100 ft. (30m) apart
- Clear indication of phase angle
- Two LED displays are automatically synchronized during phasing operations

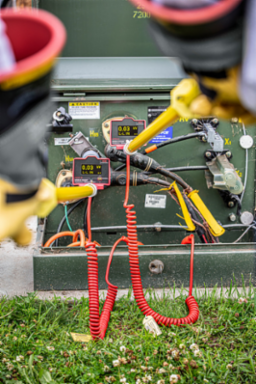

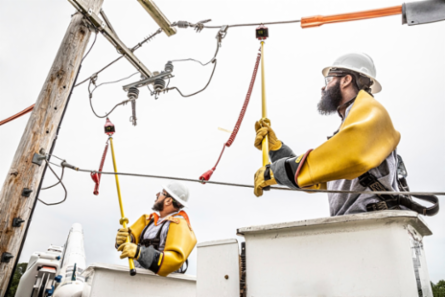

- Versatile for overhead and underground applications
- Capacitive Test Point and Peak Hold modes
Documentation & Downloads
Specifications
Key Specifications
- Sub Brand
- HDE
- Model
- DDPM-40
- Accuracy
- Within 1% of reading +/- 3 counts (line-to-ground & line-to-line measurements)
- Operating Temperature
- -20°F to +120°F (-29°C to +49°C)
- Frequency Rating
- 25 - 1000Hz AC/DC
- Included

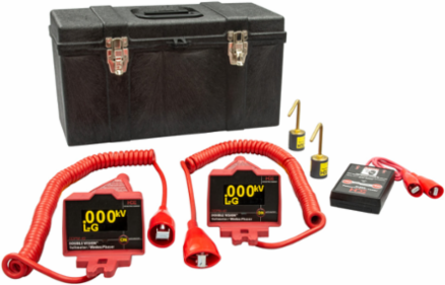

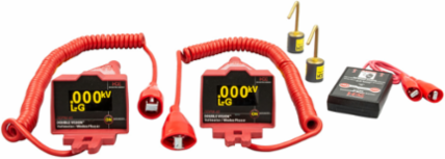

- DDPM-40, (2) 025-OLPS-5 Overhead Brass Hook Probes (2), PT-5000B Proof Tester, CS-DDVM Case
TypeVoltmeter & Phasing set
Voltage Rating5V - 43kV line-to-line, 5V - 25kV line-to-ground
DisplayTwo LED displays with 0.7" numeral height. Displays 3 digits
Dimensions14" L x 4.1" H x 4.6" W (36 cm x 10 cm x 12 cm) without probes
Phase IndicationPhase Angle
