Greenlee DDPM-40S/K01 Double Vision® Dual Display Wireless Phasing Meter 5V-43kV, OH Single Kit 1

MPN: DDPM-40S/K01
UPC: 783310042938
PPN: GRN-DDPM-40S/K01
UNSPSC: 41113637

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

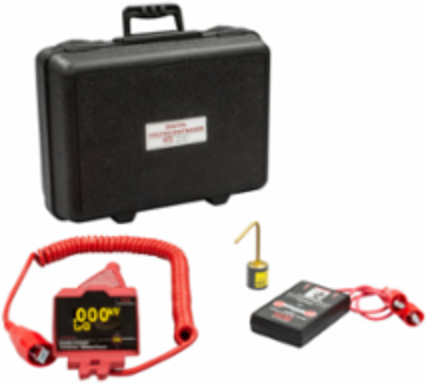

Double Vision® Dual Display Wireless Phasing Meter 5V-43kV, OH Single Kit 1

Features

Measures voltage and performs phasing operations from 50V to 40kV and up to 80kV with add-on resistors; Provides consistent high accuracy voltage measurements - within 1% of reading; Auto-ranging - no settings required; Capacitive Test Point and Peak Hold modes; Auto-shutoff and low battery indicator features; Versatile for overhead and underground applications

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Height	11 in
Weight	9.595 lbs
Application	Voltmeter
Frequency Rating	25 - 1000Hz AC/DC
Model	DDPM-40
Phase Indication	Phase Angle
Voltage Rating	5V - 43kV line-to-line, 5V - 25kV line-to-ground

Length	20.4 in
Width	14.4 in
Accuracy	Within 1% of reading +/- 3 counts (line-to-ground & line-to-line measurements)
Display	LED display with 0.7" numeral height. Displays 3 digits
Included	DDPM-40 (1) 025-OLPS-5, PT-5000B Proof Tester, CS-SVM Case
Operating Temperature	-20°F to +120°F (-29°C to +49°C)
Type	Voltmeter
