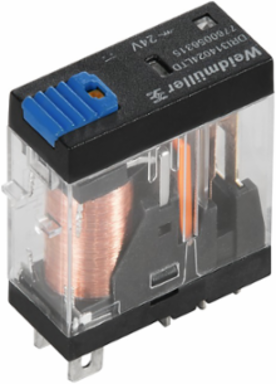

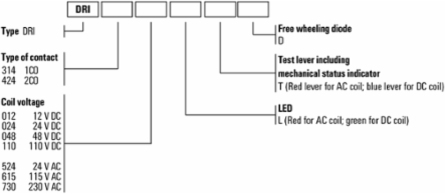

Weidmuller 7760056314 D-SERIES Relay Module, 12 V DC, 10 A, 1 CO Contact with Test Button
- MPN: 7760056314
- PPN: WDM-7760056314
CAD
$16.96
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
D-SERIES DRI, Relay, Number of contacts: 1 CO contact with test button AgNi, Rated control voltage: 12 V DC, Continuous current: 10 A, Flat blade connections (4.7 mm x 0.5 mm)
Documentation & Downloads
Specifications
General Data
| Test button | yes (lockable) |
|---|---|
| Colour | Transparent |
| Mechanical switch position indicator | Yes |
|---|---|
| UL 94 flammability rating | V-2 |
Approvals
| Approvals | CE, cURus, EAC |
|---|---|
| UL File Number Search | E312083 |
| ROHS | Conform |
|---|

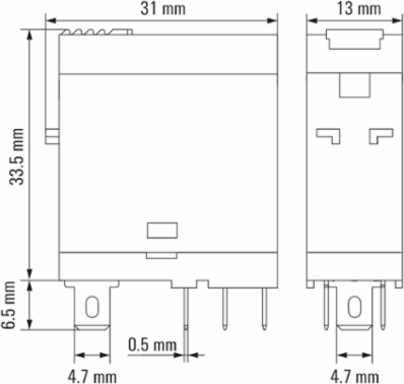

Dimensions And Weights
| Width | 13 mm |
|---|---|
| Height | 31 mm |
| Depth | 33.5 mm |
| Net weight | 28.83 g |
| Width (inches) | 0.512 inch |
|---|---|
| Height (inches) | 1.22 inch |
| Depth (inches) | 1.319 inch |
Connection Data
| Wire connection method | Flat blade connections (4.7 mm x 0.5 mm) |
|---|
Rated Data Ul
| Certificate No. (cURus) | E312083 |
|---|
Contact Data
| Contact type | 1 CO contact with test button (AgNi) |
|---|

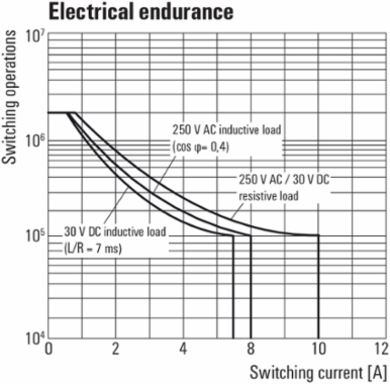

| Mechanical service life | 10 x 106 switching cycles |
|---|
Input
| Rated control voltage | 12 V DC |
|---|---|
| Power rating | 530 mW |
| Coil resistance | 270 Ω ± 10 % |
| Protective circuit | Free-wheeling diode |
| Rated current DC | 44,4 mA |
|---|---|

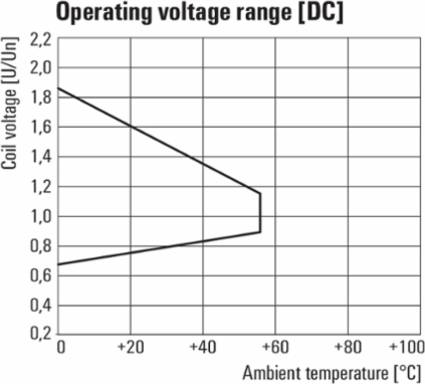

| Pull-in/drop-out voltage, typ. | 9 V / 1.8 V DC |
| Status indicator | Green LED |
Classifications
| ETIM 6.0 | EC001437 |
|---|---|
| eClass 9.0 | 27-37-16-01 |
| eClass 10.0 | 27-37-16-01 |
| ETIM 7.0 | EC001437 |
|---|---|
| eClass 9.1 | 27-37-16-01 |
Output
| Rated switching voltage | 250 V AC |
|---|---|
| Max. switching voltage, DC | 250 V |
| AC switching capacity (resistive), max. | 2500 VA |
| Switch-on delay | ≤ 15 ms |
| Min. switching power | 10 mA @ 12 V, 100 mA @ 5 V |
| Max. switching voltage, AC | 250 V |
|---|---|
| Continuous current | 10 A |

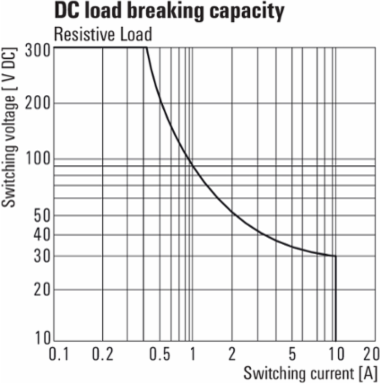

| DC switching capacity (resistive), max. | 240 W @ 24 V |
| Switch-off delay | ≤ 10 ms |
| Max. switching frequency at rated load | 0.1 Hz |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Rated voltage | 300 V |
|---|---|
| Pollution severity | 2 |
| Protection degree | IP20 |
| Creepage and clearance distance input – output | ≥ 4 mm |
| Impulse withstand voltage | 5 kV (1.2/50 µs) |
| Surge voltage category | III |
|---|---|
| Insulating material group | IIIa |
| Dielectric strength, Input/Output | 5 kVeff / 1min |
| Dielectric strength of open contact | 1 kVeff / 1 min |
Temperatures
| Humidity | 35...85 % rel. humidity, no condensation |
|---|---|
| Operating temperature, min. | -40 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
| Operating temperature, max. | 55 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -40 °C...55 °C |
Further Details Of Approvals / Standards
| Standards | IEC 61810-1, EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 + A1:2011, UL 508 |
|---|
| Certificate No. (cURus) | E312083 |
|---|
