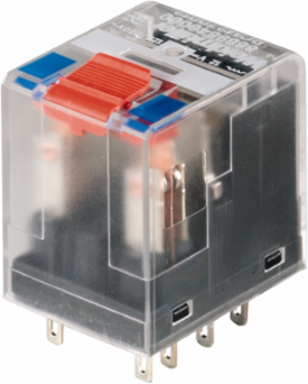

Weidmuller 8689770000 RIDERSERIES Relay Module - 2 CO Contacts, 12 A Continuous Current, 24 V AC
- MPN: 8689770000
- PPN: WDM-8689770000
CAD
$28.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

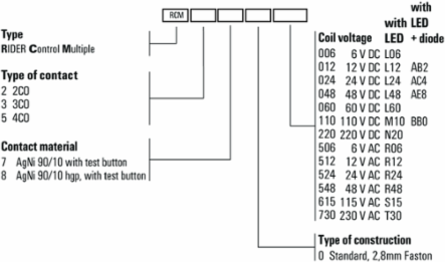

RIDERSERIES RCM, Relay, Number of contacts: 2 CO contact with test button AgNi 90/10, Rated control voltage: 24 V AC, Continuous current: 12 A, Plug-in connection
Documentation & Downloads
Specifications
General Data
- Test button
- yes (lockable)
- Colour
- Transparent
Mechanical switch position indicatorYes
UL 94 flammability ratingV-2
Approvals
- Approvals
- CE, CSA, cURus, EAC, VDE
- UL File Number Search
- E224238
ROHSConform
Dimensions And Weights
- Width
- 22.5 mm
- Height
- 28 mm
- Depth
- 29 mm
- Net weight
- 30 g
Width (inches)0.886 inch
Height (inches)1.102 inch
Depth (inches)1.142 inch
Connection Data
- Wire connection method
- Plug-in connection
Rated Data Ul
- Certificate No. (cURus)
- E224238
Contact Data

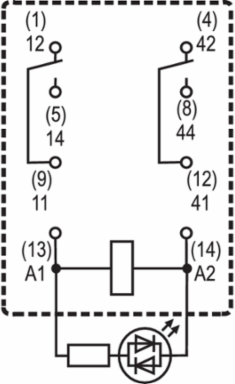

- Contact type
- 2 CO contact with test button (AgNi 90/10)

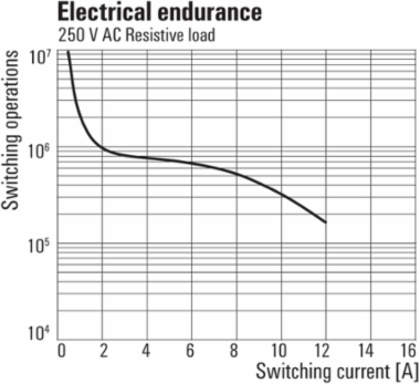

Mechanical service lifeAC coil 20 x 106 switching cycles, DC coil 30 x 106 switching cycles
Input

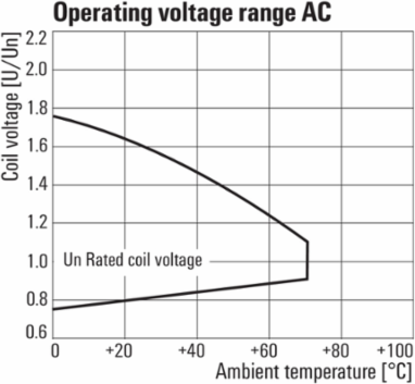

- Rated control voltage
- 24 V AC
- Power rating
- 1.0 VA
- Coil resistance
- 192 Ω ± 10 %
Rated current AC41.6 mA
Pull-in/drop-out voltage, typ.38.4 V / 14.4 V AC
Status indicatorred LED
Classifications
- ETIM 6.0
- EC001437
- eClass 9.0
- 27-37-16-01
- eClass 10.0
- 27-37-16-01
ETIM 7.0EC001437
eClass 9.127-37-16-01
UNSPSC30-21-19-17
Output
- Rated switching voltage
- 240 V AC

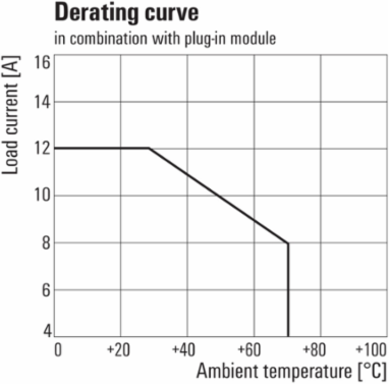

- Continuous current
- 12 A
- AC switching capacity (resistive), max.
- 3000 VA
- Switch-on delay
- ≤ 15 ms
- Min. switching power
- 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
Max. switching voltage, AC400 V
Inrush current24 A / 20 ms

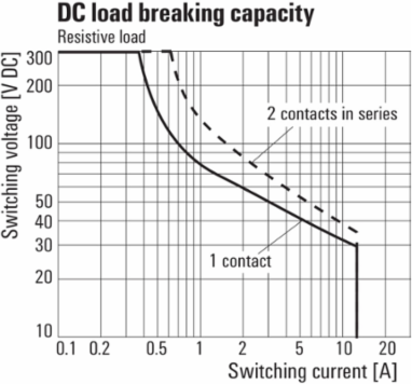

DC switching capacity (resistive), max.288 W @ 24 V
Switch-off delay≤ 10 ms
Max. switching frequency at rated load0.1 Hz
Insulation Coordination
- Rated voltage
- 250 V
- Pollution severity
- 2
- Protection degree
- IP20
- Creepage and clearance distance input – output
- ≥ 4 mm
- Dielectric strength of open contact
- 1.2 kVeff /1 min.
Surge voltage categoryIII
Insulating material groupIIIa
Dielectric strength, Input/Output2.5 kVeff / 1 Min.
Dielectric strength of neighbouring contacts2.5 kVeff / 1 Min.
Impulse withstand voltage5 kV (1.2/50 µs)
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.70 °C
Storage temperature, max.85 °C
Operating temperature-40 °C...70 °C
Further Details Of Approvals / Standards
- Standards
- IEC 61810-1, UL508
- Certificate No. (cURus)
- E224238
Certificate No. (CSA)249409-2426937
