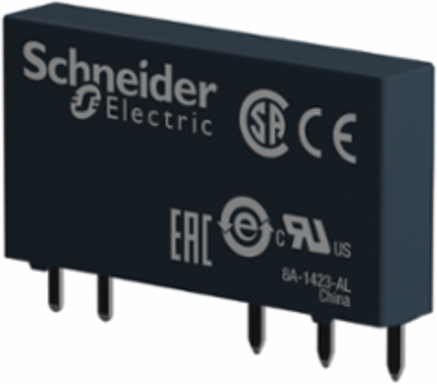

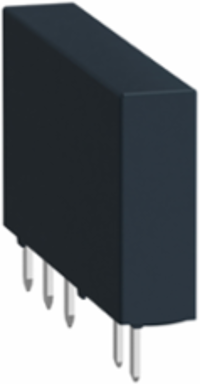

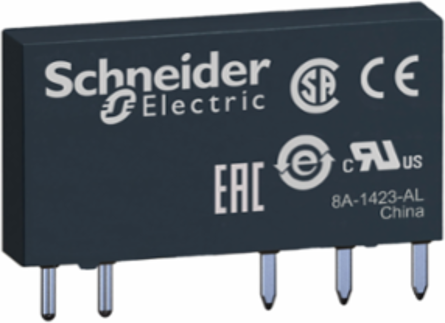

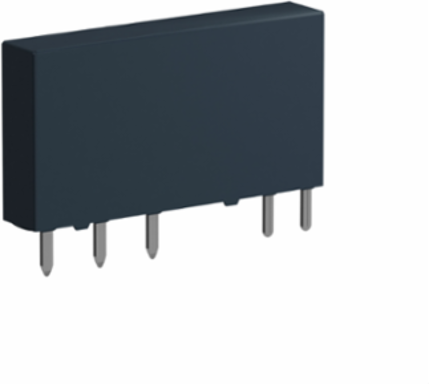

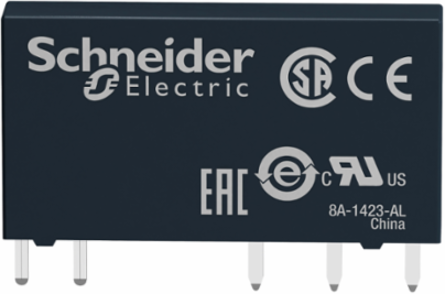

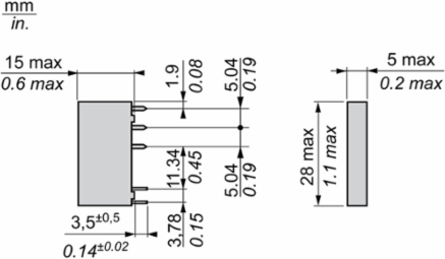

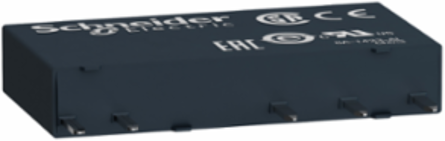

Schneider Electric RSL1AB4ND Harmony Slim Interface Plug-in Relay, 1CO, 6A, 60V DC, 5mm Width

MPN: RSL1AB4ND
PPN: SCH-RSL1AB4ND

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$11.92

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

"This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 60V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A." "It has large choice of number of contacts for high rated current use." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere." "Easy installation and withdrawal the relay from its socket." "It is compatible with high breaking capacity or low-level current application requirements." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "[delete]" "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, Czechia, France, Singapore, United States

Depth	18.5 mm

Complementary Attributes

Maximum Switching Capacity	1500 VA, 50 W
Line Rated Current	6 A
Minimum Switching Capacity	120 mW
Minimum Switching Voltage	12 V

Control Circuit Type	DC
Maximum Switching Voltage	277 V
Minimum Switching Current	10 mA
Rated Operational Voltage Limits	45...84 V DC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contact Operation	standard, standard
Operating Time	5 ms reset, 12 ms
Vibration Resistance	+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
Control Circuit Type2	DC
[Uc] Control Circuit Voltage	DC, 60 V
Carbon Footprint Of The Distribution Phase [A4]	0.0006451075, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0000302322
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	2 kg CO2 eq., 2.136386116
Local Publishable Date	2026-03-26
Stocking Flag	N
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Coil Consumption	0.21 W
Compatibility Code	RSL
Contacts Type And Composition	1 C/O
Dielectric Strength	1000 V AC between contacts4000 V AC between coil and contact
Load Current	6 A 250 V AC 0.5 mm mounting distance
Mounting Support	socket or PCB
Product Availability	Stock - Normally stocked in distribution facility
Protection Category	RT III
Relay Type	slim interface relay
Safety Reliability Data	B10d = 60000
Shape Of Pin	flat (PCB type)
Status Led	without
Test Levels	level A group mounting
Pep Code	ENVPEP2502015EN
Pep Verification Date	2018-09-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; <lt/> 1kV; EU-27
Height Nominal	28 mm
[Ie] Rated Operational Current	6 A AC-1/DC-1)IEC/UL
[Ui] Rated Insulation Voltage	250 V IEC277 V cUL
Drop-out Voltage Threshold	>= 0.05 Uc>= 0.05 Uc
Package Weight(Lbs)	5 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Operating Rate	<= 360 cycles/hour under load, <= 360 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 360 cycles/hour under load, <= 360 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Shock Resistance	5 gn 11 ms) not operating IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
Control Circuit Voltage	60 V
Certificate Agency	CSA, UL, EAC
Terminals Description Iso N°1	(11-12-14)OC, (A1-A2)CO, (11-12-14)OC, (A1-A2)CO
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.001276005, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.2 kg CO2 eq., 0.1560610782
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2353
China Rohs In Scope	Yes
Phenolic Free Solution	Yes
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Resistance	16600 Ohm at 23 °C +/- 15 %
Contacts Material	silver alloy (AgSnO2)
Control Type	without lockable test button
Electrical Durability	60000 cycles, 6 A at 250 V, AC-1 C/O
Mechanical Durability	10000000 cycles
Operating Position	any position
Product Or Component Type	plug-in relay
Range Of Product	Harmony Electromechanical Relays
Returnability	Yes
Series Name	RSL series
Software Version	EIME v5.7.0.4
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	2 kg CO2 eq.
Database Version	2018-09
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 100% use rate, in compliance with French standards.
Functional-unit Unit	unité (unit)
Energy Model - Manufacturing [A1-a3]	Energy model used: China
Energy Model - Use [B6]	Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %	70
Width Nominal	5 mm
[Ithe] Conventional Enclosed Thermal Current	6 A -40-55 °C
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536410050
