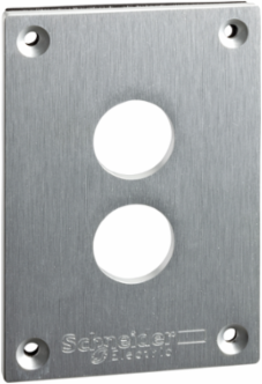

Schneider Electric XAPE302 Front plate with fixing screws, Harmony XAP, metal, 2 cut-outs, 22mm, 72 x 105 mm

MPN: XAPE302
PPN: SCH-XAPE302

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$49.20/ EA

Qty:

Loading add to cart quantity...

Description

Front plate with fixing screws, Harmony XAP, metal, 2 cut-outs, 22mm, 72 x 105 mm

Specifications

Environment

Ambient Air Temperature For Operation: -25-70 °C

Overvoltage Category: class I IEC 60536 || class I NF C 20-030

Ambient Air Temperature For Storage-40-70 °C

Protective TreatmentTC || TH

Contractual warranty

Warranty: 18 months

Offer Sustainability

China Rohs Regulation: X

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2111017EN

Toxic Heavy Metal Free: Yes

Reach Regulation: Free of Substances of Very High Concern above the threshold

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Reach Free Of SvhcYes

Complementary

Net Weight: 0.075 kg

Key Specifications

Product Destination: for Ø 22 mm control and signalling units

Range Of Product: Harmony XAP

Product Or Component Type: front plate with fixing screws

Product Front Plate Size: 72 x 105 mm

Device Short Name: XAPE

Number Of Cut-Out2 cut-outs

Device Mountingflush

Resistance To Chemical Agentsgood resistant to acetone || good resistant to alcohols || good resistant to chloride and fluoride solvents || good resistant to diluted mineral acids || good resistant to oils and petrol || good resistant to organic acids || good resistant to salts

Materialanodised aluminium

Ip Degree Of ProtectionIP65 IEC 60529 || IP657 NF C 20-010
