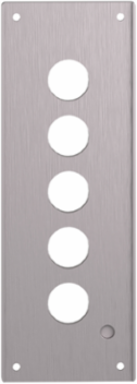

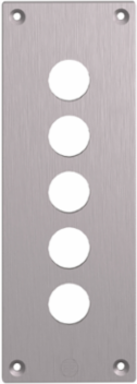

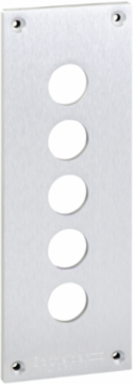

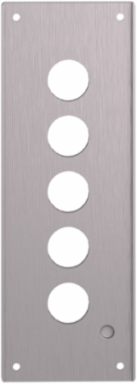

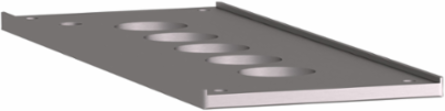

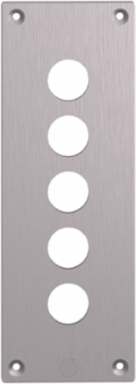

Schneider Electric XAPE305 Harmony XAP Front Plate, 72 x 204 mm, 5 Cut-Outs, Metal

MPN: XAPE305
PPN: SCH-XAPE305
UNSPSC: 39122216

$92.26

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Schneider Electric's Harmony XAP Front Plate is designed to provide a robust and efficient solution for your automation and control needs. Measuring 72 x 204 mm and featuring five cut-outs, this front plate facilitates easy integration of switches and sensors, allowing for a customizable configuration in your control systems. Constructed from durable metal, it ensures longevity and resilience in various industrial environments, making it an essential component for anyone looking to enhance their operational efficiency. This product exemplifies Schneider Electric's commitment to quality and functionality in automation and control solutions.

Features

Empty stations for customer assembly with 1 to 10 holes depending on the model
Operating simplicity, flexibility, and robustness
Full compatibility with Harmony XB4 or Harmony XB5 pushbutton ranges
Metal offer for use in a wide range of environments
Pre-drilled or undrilled zinc or aluminium alloy enclosures
A large set of accessories to customize your panels

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Weight	160 g

Physical Attributes

Product Front Plate Size	72 x 204 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Overvoltage Category	class I conforming to IEC 60536, class I conforming to NF C 20-030
Resistance To Chemical Agents	good resistant to acetone, good resistant to alcohols, good resistant to chloride and fluoride solvents, good resistant to diluted mineral acids, good resistant to oils and petrol, good resistant to organic acids, good resistant to salts
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.0143813757
Carbon Footprint Of The Manufacturing Phase A1 To A3	1 kg CO2 eq., 1.1552733686
Local Data Status	Publishable
Return Indicator	Y
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	XAPE
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	front plate with fixing screws
Returnability	Yes
Sustainable Packaging	No
Database Version	2016-11
Nbr. Of Units In Pkg.	1
Number Of Cut Out	5 cut-outs
Functional Unit Description	The main function of XAP control station box is to provide complete water tight connection for XB4 and XB5 range products during 20 years with the following dimension is 80mm x 80mm x 51mm with EN/IEC 60529 standard.
Functional Unit Unit	Unit

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Protective Treatment	TH, TC
Carbon Footprint Of The Distribution Phase A4	0.0206436684, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.000485418, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Compatibility Code	XAPE
Material	anodised aluminium
Product Destination	for Ø 22 mm control and signalling units
Range Of Product	Harmony XAP
Software Version	EIME v5.9.1
Total Lifecycle Carbon Footprint	1 kg CO2 eq.
Data Source	extrapolated product
Customs Code	8538908180
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Ip Degree Of Protection	IP65 IEC 60529, IP65 NF C 20-010
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2111017EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2111017EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	1.1907838307
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2021-12-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
