Schneider Electric XB4BA21 Harmony XB4 Metal Push Button 22mm Spring Return 1NO IP66/IP67/IP69K
- MPN: XB4BA21
- PPN: SCH-XB4BA21
CAD
$36.91
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

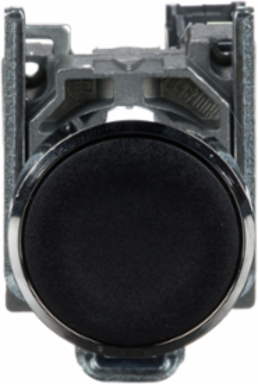

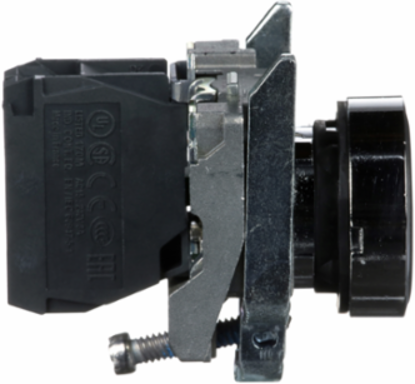

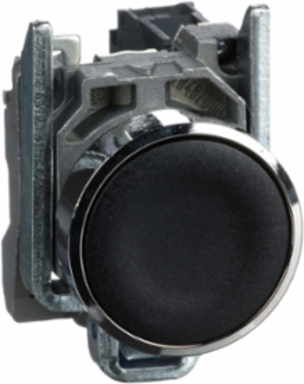

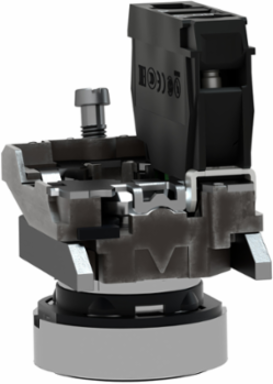

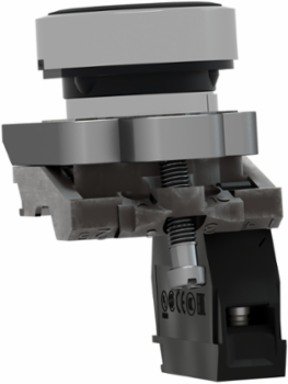

Harmony XB4 Metal Push Button 22mm Spring Return 1NO IP66/IP67/IP69K
Features
- Constructed with a high-strength, chrome-plated metal housing, this pushbutton is designed for maximum durability in heavy-duty manufacturing and oil-and-gas sectors. The rugged metal construction resists mechanical impact and chemical corrosion, ensuring the actuator remains functional even under the physical stress of high-vibration machinery and extreme warehouse conditions.
- Constructed with a high-strength, chrome-plated metal housing, this pushbutton is designed for maximum durability in heavy-duty manufacturing and oil-and-gas sectors. The rugged metal construction resists mechanical impact and chemical corrosion, ensuring the actuator remains functional even under the physical stress of high-vibration machinery and extreme warehouse conditions.
- Featuring a standard spring return (momentary) mechanism, the button returns to its original position immediately after being released. This tactile, responsive action is the industry standard for "Start" or "Inching" commands, providing the operator with clear physical feedback while preventing the machinery from staying energized unintentionally if the operator moves away.

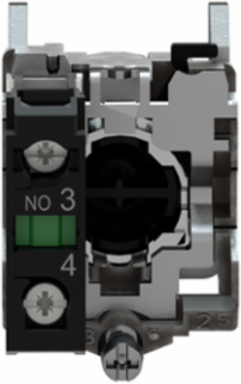

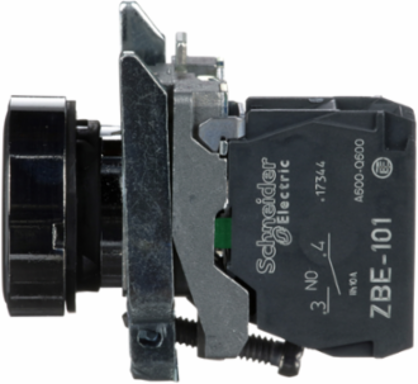

- The XB4BA21 comes pre-assembled with a single Normally Open (NO) screw-clamp contact block, allowing for immediate integration into your control circuit. Its modular "plug-and-play" design allows you to easily stack additional contact blocks or swap the actuator without replacing the entire unit, significantly reducing maintenance time and simplifying inventory for panel builders and plant electricians.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Mexico, United States |
|---|
| Depth | 52 mm |
|---|
Physical Attributes
| Cap Operator Or Lens Color | black |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | no, 1 |
| Electrical Reliability | λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Cap Operator Or Lens Color | black |
| Certificate Agency | CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV |
| Terminals Description Iso N°1 | (13-14)NO, (13-14)NO |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1011909846, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.6 kg CO2 eq., 0.5670415184 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308035EN |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 19 % |
| Compatibility Code | XB4 |
| Contacts Material | silver alloy (Ag/Ni) |
| Contacts Usage | standard contacts |
| Fixing Collar Material | zamak |
| Head Type | standard |

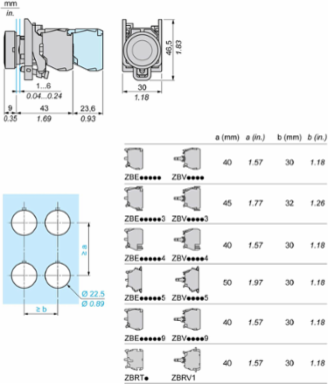

| Mounting Diameter | 22.5 mm |
| Operating Travel | 2.6 mm NO changing electrical state)4.3 mm total travel) |
| Overvoltage Category | class I conforming to IEC 60536 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Repair Index | A |
| Range Of Product | Harmony XB4 |
| Returnability | Yes |
| Shape Of Signaling Unit Head | round |
| Software Version | v5.9.4 |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Type Of Operator | spring return |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Operator Profile 1 Marking | unmarked |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; UE-27 |
| Height Nominal | 47 mm |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Nbr. Of Units In Pkg. | 1 |
| Product Repair Index - Dam Document Id | XB4BS8442-ENVREPAIR-A-EN |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Shape Of Screw Head | cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Contacts Composition | 1 NO |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0104616845, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0160455516 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0 kg CO2 eq., 0.0313123944 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Product Repair Index Dam Doc | XB4BS8442-ENVREPAIR-A-EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 18 % |
| Bezel Material | chromium plated metal |
| Contact Operation | slow-break |
| Contacts Type And Composition | 1 NO |
| Device Short Name | XB4 |
| Gcr Bridge | XB4BACUST01 |
| Mechanical Durability | 10000000 cycles |
| Operating Force | 3.8 N NO changing electrical state |
| Operator Profile | black flush, unmarked |
| Positive Opening | without |
| Product Or Component Type | push-button |
| Protective Treatment | TH |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 0.7 kg CO2 eq. |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Connections Terminals 8 Connections Terminals | screw clamp terminals |
| Pep Code | ENVPEP2308035EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 84 |
| Width Nominal | 30 mm |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Cap/Operator Or Lens Colour | black |
| Short-circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Package Weight(Lbs) | 80.000 g |
| Take-back | No |
| Customs Code | 8536509035 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Take Back | No |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308035EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2308035EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | NEMA 13, NEMA 4X, UL type 4X/13 |
| Recycled Metal Content At Cr Level | 18 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.7260521334 |
| Environmental Disclosure | ENVPEP2308035EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | push-button |
|---|
| Range Of Product | Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC001028 |
|---|
| ETIM 9 | EC001028 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
