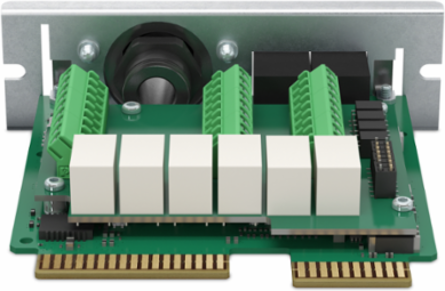

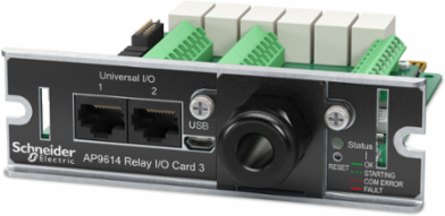

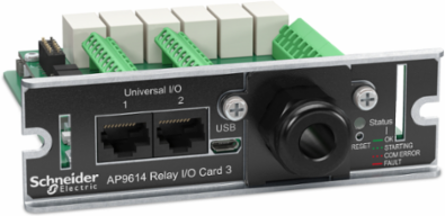

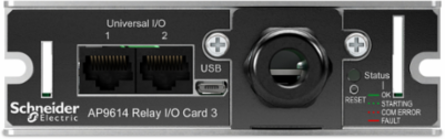

APC AP9614 Dry Contact I/O Card, 5.04 Inch Depth, 4.76 Inch Width, 1.50 Inch Height, 0.44 lb
- MPN: AP9614
- UPC: 731304733065
- PPN: APC-AP9614
CAD
$532.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included micro-USB cable to the Card and a PC to use the dynamic Web UI. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.
Features
- Provides 6 configurable output relays and 4 input contacts
- Universal I/O ports support optional environmental sensors and Dry Contact I/O Accessory
- Monitor connected devices via dynamic Web UI
- Configure actions to status changes or UPS events via dynamic Web UI
- For UPS devices with a SmartSlot 160kVA or below
Documentation & Downloads
Specifications
Additional
| Voltage | 24 V |
|---|---|
| Operating Temperature Range | 0 to 40 C |
| Operating Altitude | 0 to 10000 ft |
| Cord Length | 0.52 ft (0.159 m) |
| Width | 4.76 in (12.1 cm) |
| Weight | 0.44 lb (0.20 kg) |
| Mounting Mode | Not rack-mountable |
| RoHS | Compliant with Exemptions |
| Mercury Free | Yes |
| Customs Number | 8537109170 |
| Current | 0-200 mA |
|---|---|
| Storage Temperature Range | -15 to 65 C |
| Storage Altitude | 0 to 50000 ft |
| Height | 1.50 in (3.8 cm) |
| Depth | 5.04 in (12.8 cm) |
| Rack Height | 0U |
| Material Type | Dry contact |
| WEEE | No |
| REACH | Contains Substances of Very High Concern above threshold |
| Compliance | EN 55022 Class A, EN 55024, FCC Part 15 Class A, CISPR 32, IEC 62040-2, EN 61326-2 |
