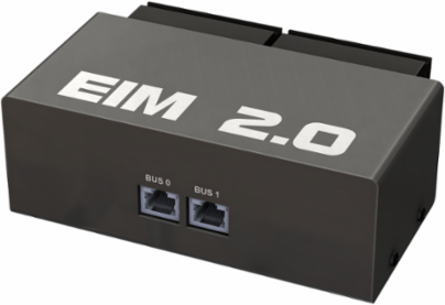

Schneider Electric METSEHDPM6DI PowerLogic HDPM6000 Expanded Input Module (EIM 2.0), additional digital input module
- MPN: METSEHDPM6DI
- PPN: SCH-METSEHDPM6DI
CAD
$1308.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Optional expension module compatible with PowerLogic HDPM6000 devices that provides additional digital inputs. This Expanded Input Module provide 24 dry contact inputs. Maximum input voltage is 5VDC. The input module dimensions are 157mm in width, 103mm in height and 58mm in depth. The elements can be mounted on a DIN rail thanks to the clips on the side. To be connected to the PowerLogic HDPM6000 head unit with Ethernet cable in daisy-chain.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth58 mm
Important Information Attributes
- Carbon Footprint Of The Distribution Phase [A4]
- 0.3467851112110932, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.01379662321112168, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 43 kg CO2 eq., 43.47971105608315
- Local Publishable Date
- 2025-07-15
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2510044EN
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PowerLogic
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 55 kg CO2 eq.
- Pep Code
- ENVPEP2510044EN
- Pep Verification Date
- 2025-10-17
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 70
- Width Nominal
- 157 mm
- Package Weight(Lbs)
- 1.200 kg
- Warranty (In Months)
- 18
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.494704496061157
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 9.167797650117006
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2138
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Energy Efficiency OptimizedFalse
Product Or Component TypeI/O module
ReturnabilityNo
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh90.4032
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal103 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 54.50279493668353
- Environmental Disclosure
- ENVPEP2510044EN
- Packaging Made With Recycled Cardboard
- No
- Pep Code
- ENVPEP2510044EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-20-70 °C, -20-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2510044EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep Verification Date2025-10-17
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- I/O module
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Input Attributes
- Input Impedance
- 47 Ohm
- Number Of Inputs
- 24 dry contact
Input Voltage5 V DC
