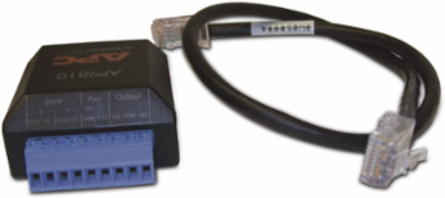

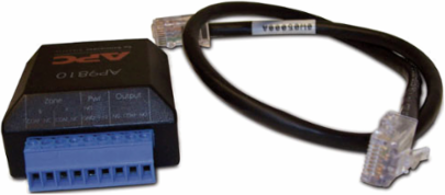

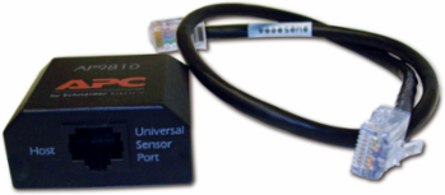

APC AP9810 Dry Contact I/O Accessory, 1.76 Inch Depth, 1.30 Inch Height, 10 Inch Width, 0.31 lb Weight

MPN: AP9810
UPC: 731304274032
PPN: APC-AP9810

$243.28

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The APC Dry Contact I/O Accessory connects to the Universal I/O (UIO) port of a Network Management Card or Dry Contact I/O Card and provides 2 additional dry contact input and relay output interfaces. Monitor and configure dry contact inputs and relay outputs in the Network Management Card Web UI or Dry Contact I/O Card Configuration Utility UI.

Features

Monitor conditions from external devices.
Control output from external devices via output relays.
Provides 2 additional dry contact inputs and relay output interfaces
For Network Management Card (NMC) with Universal I/O ports and Dry Contact I/O Card
Monitor output relays and input contacts in NMC and Dry Contact I/O Card user interfaces
Configure actions to state changes via NMC user interface

Documentation & Downloads

Specifications

Additional

Input Voltage	24 V
Maximum Total Current Draw per Phase	40 mA
Operating Altitude	0 to 10,000 ft
Depth	1.76 in (4.46 cm)
Width	10.00 in (25.4 cm)
Country of Origin	Philippines
WEEE Compliance	EU Disposal Compliant
Warranty	24 months
Halogen Content	Contains halogen above thresholds
Storage Altitude	0 to 15,000 ft

Output Voltage	12 V 25 mA DC
Operating Temperature Range	32 to 104 F (0 to 40 C)
Power Supply Type	Self powered via UPS interface port
Height	1.30 in (3.3 cm)
Weight	0.31 lb (0.14 kg)
Material Compliance	RoHS Compliant, Lead Free, REACH Free of SVHC
Standards	EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6
Energy Efficiency	Energy efficient product
Storage Temperature Range	5 to 149 F (-15 to 65 C)
