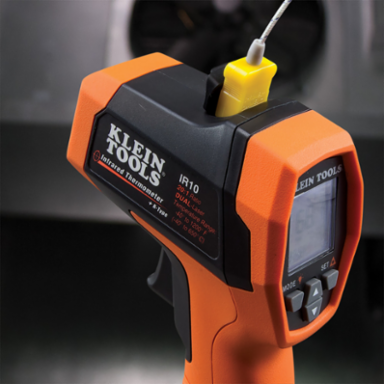

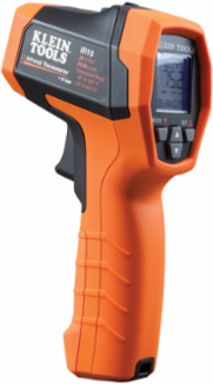

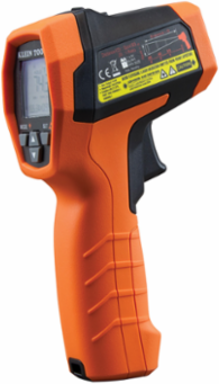

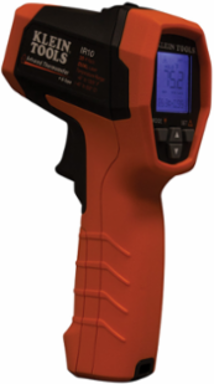

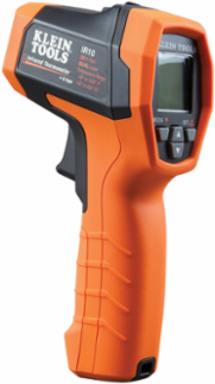

Klein Tools IR10 Dual-Laser Infrared Thermometer, 20:1 Distance-to-Spot, -40 to 1200°F Range
- MPN: IR10
- UPC: 092644691850
- PPN: KLT-IR10
- UNSPSC: 41112224
CAD
$171.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Klein Tools IR10 is a professional dual targeting laser infrared (IR) thermometer. It offers a wide measurement range, a tight 20:1 distance-to-spot ratio, dual targeting lasers, and several calculation modes to facilitate different temperature measurement applications. In addition to measuring temperature using IR emission, it can also measure temperature using a standard K-type probe.
Features

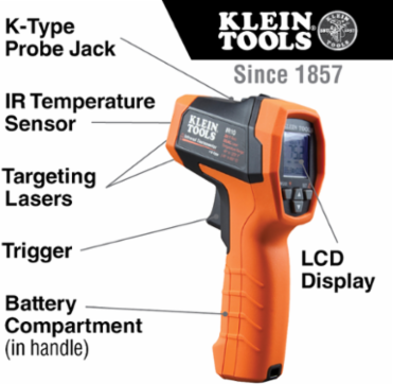

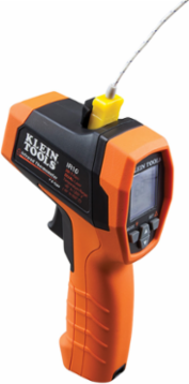

- Incorporates surface temperature measurement capability using IR emission and can also measure bulk temperatures of air, gas, or liquids using a standard K-Type probe

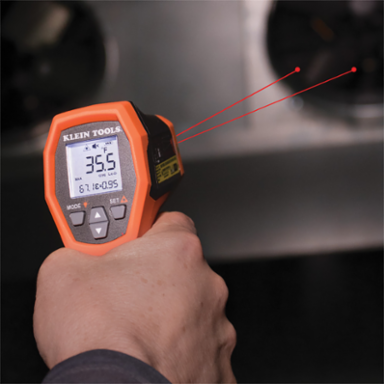

- Dual targeting lasers offer more accurate determination of the area being tested
- Optical Resolution (Distance-to-Spot) is 20:1
- Measurement range for both IR and K-Type probe -40 to 1200-Degree Fahrenheit (-40 to 650-Degree Celsius)
- Not a medical device; thermometer is NOT intended for use on people or animals.
- Adjustable emissivity from 0.1-1.0 delivers flexibility to address multiple applications
- Bright backlit display for working in low ambient lighting conditions
- Statistical parameters for measurement event - max/min/avg/diff
- User definable high/low limits with audible and visual alarms when limits are breached
- Uses one 9-volt alkaline battery, with battery life expectancy at 8 hours of continuous use with laser and backlight on
- Includes custom pouch, K-Type probe and battery
- Soft-touch, over-mold housing; built to withstand a 9.9-Foot (3 m) drop
- Auto Power-Off conserves and extends battery life
- IP54 ingress protections for dust and water resistance
- U.S. patent D791,624
- Dual Targeting Lasers, 20:1 Distance-to-Spot Ratio; Hi/Low Limits with Simultaneous Audible and Visual Alarms When Limits are Breached; Bright Backlit Display; Works with K-Type Probe Also
Documentation & Downloads
Specifications
Key Specifications
- Type
- Dual-Laser Infrared Thermometer
- Range
- -40° to 1200° F (-40° to 650° C)
- Application
- Temperature Measurements Using IR Emission or K-Type Probe
- Accuracy
- IR - 32° F and Above - +/- 3° F or +/- 1.5% (Whichever is Greater); Less Than 32° F - +/- (3.6° F + 0.2° F per Degree); K-Type - 32° F and Above - +/- 2° F or +/-% (Whichever is Greater); Above 32° F - +/- 3° or +/1% (Whichever is Greater)
- Included
- Thermometer; Custom Pouch; K-Type Probe; Battery
- Distance to Spot
- 20 -1
- Calculations
- Min/Max/Difference/Average
- Auto Calibration
- No
- Ingress Protection
- IP54
- Weight (oz)
- 7.4
- Overall Length (cm)
- 17.8
- Overall Length (Inch)
- 7
- Overall Height (Inch)
- 4.49
- Height
- 7.0500 in
- Depth
- 4.5600 in
MaterialPlastic Housing, Electronic Compenents
Response Time<150ms
Batteries1 x 9V
DisplayDigital Backlit
Degree FormatF or C
Audible AlertYes
Display Resolution0.1F (0.1 C)
StandardEN 61326-1:2013, EN 608251:2014, 21 CFR 1040.10 and 1040.11, Class II Laser, CE
Drop Protection3 m
Overall Height (cm)11.4
Weight (g)210
Overall Width (Inch)2.05
Overall Width (cm)5.2
Width2.0500 in
Weight0.4630 lbs
