Klein Tools IR1KIT Infrared Thermometer with Laser Targeting, -4 to 752°F Range, GFCI Tester
- MPN: IR1KIT
- UPC: 092644693199
- PPN: KLT-IR1KIT
- UNSPSC: 41112224
CAD
$59.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

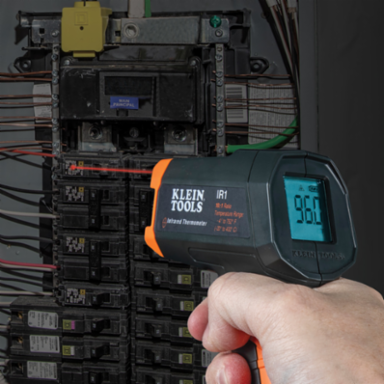

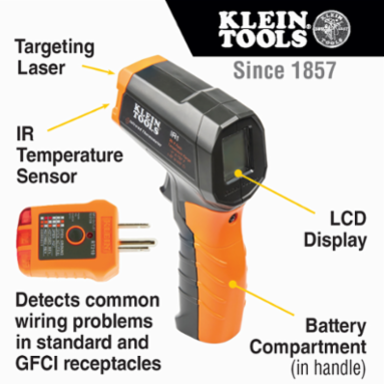

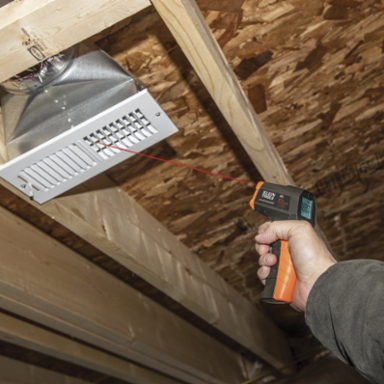

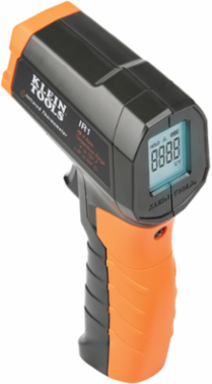

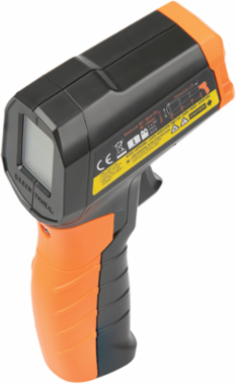

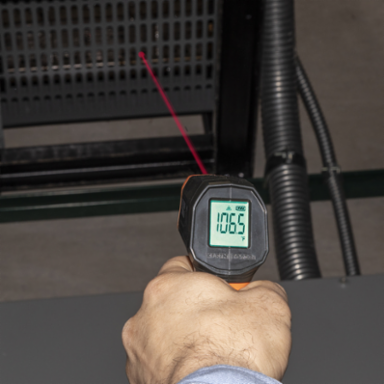

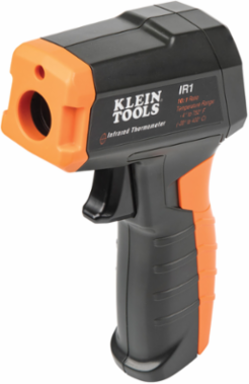

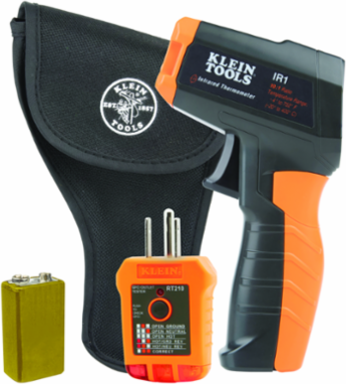

The Klein Tools IR1KIT includes the Infrared Thermometer (Cat. No. IR1) and GFCI Receptacle Tester (Cat. No. RT210). The IR1 infrared thermometer with a targeting laser has a wide measurement range from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius) and a 10:1 distance-to-spot ratio. The RT210 GFCI Receptacle Tester detects common wiring problems.
Features

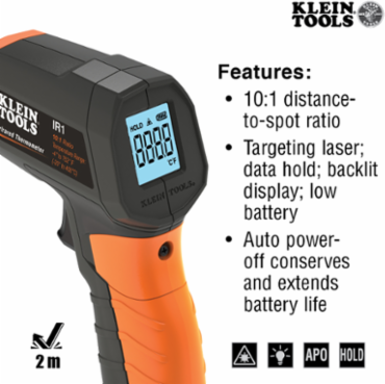

- Infrared Thermometer (Cat. No. IR1) has an optical resolution (distance-to-spot) of 10:1

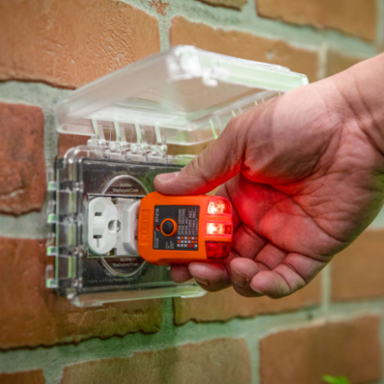

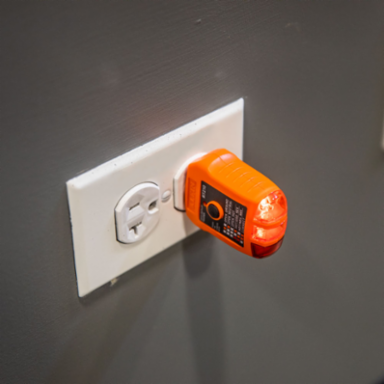

- GFCI Outlet Tester (Cat. No. RT210) detects common wiring problems in standard and GFCI receptacles
- Both products have a drop protection to 6.6-Foot (2 m)
- Infrared Thermometer has a wide measurement range from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius)
- Not a medical device; thermometer is NOT intended for use on people or animals
- Fixed emissivity of 0.95 for the Infrared Thermometer
- Infrared Thermometer includes custom pouch and a 9V battery
- Auto Power-Off feature of the Infrared Thermometer conserves and extends battery life
- Infrared Thermometer is Certified to IEC EN 61326-1.2006, EN608251.1994+A2.2001+A1.2002
- Target Laser on IR1
Documentation & Downloads
Specifications
Key Specifications
- Degree Format
- F or C
- Display
- Digital Backlit
- Display Resolution
- 0.1F (0.1 C)
- Accuracy
- ±4° F or ±2%; Accuracy Below Freezing is ±4° F Plus 0.2 Degrees Per Degree Below 32° F
- Material
- Plastic Housing, Electronic Components
- Range
- -4° to 752° F (-20° to 400° C)
- Type
- Infrared Thermometer with Targeting Laser
- Batteries
- 1 x 9V
- Weight (oz)
- 7.1
- Overall Length (cm)
- 15.3
- Overall Length (Inch)
- 6.01
- Overall Height (Inch)
- 4.14
- Height
- 3.2500 in
- Depth
- 9.2130 in
Response Time<0.25s
StandardIR1: EN 61326-1:2013, EN 608251:2014, 21 CFR 1040.10 and 1040.11, Class II Laser, CE
Distance to Spot10 -1
Auto CalibrationNo
Audible AlertNo
ApplicationTemperature Measurement and Electrical Testing
IncludedRT210 GFCI Receptacle Tester; Custom Pouch; 1 x 9V Battery
Drop Protection6.6' (2 m)
Overall Height (cm)10.5
Weight (g)201
Overall Width (Inch)1.24
Overall Width (cm)3.1
Width6.4570 in
Weight0.7300 lbs
