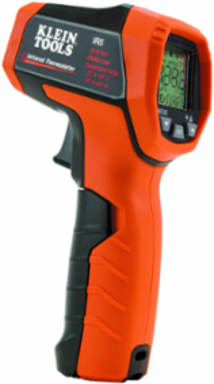

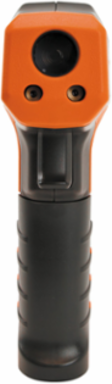

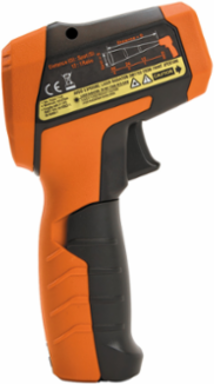

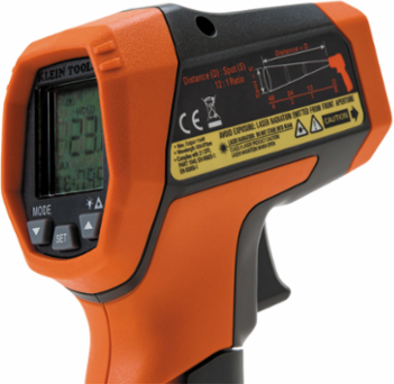

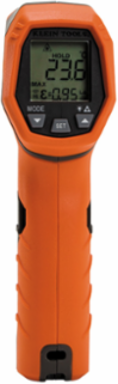

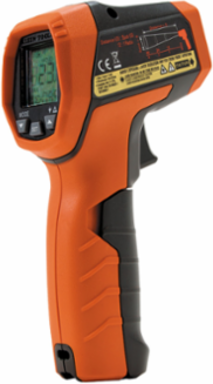

Klein Tools IR5 Dual Laser Infrared Thermometer - 12:1 Distance-to-Spot, Measurement Range: -22°F to 752°F
- MPN: IR5
- UPC: 092644690303
- PPN: KLT-IR5
- UNSPSC: 41112224
CAD
$96.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

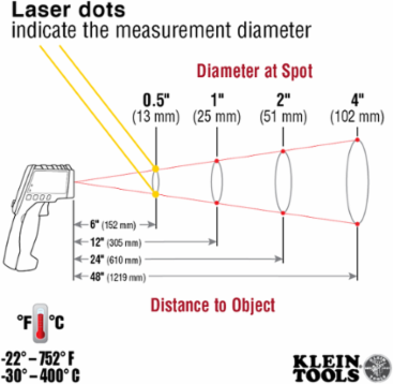

Klein Tools IR5 is a professional dual-laser targeting infrared thermometer, offering a wide measurement range, a tight 12:1 distance-to-spot ratio, dual targeting lasers, and several calculation modes to facilitate different temperature measurement applications. The dual lasers assist in targeting the measurement area. The distance between the two laser spots on the surface of the object being measured approximates the diameter of the circular measurement area from which the infrared sensor is collecting data.

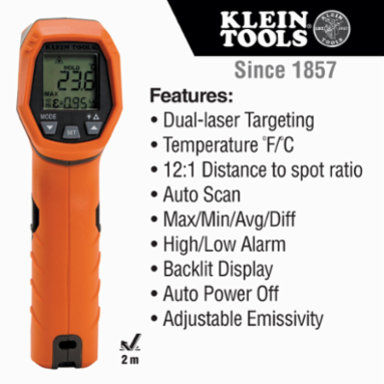

Features
- Optical Resolution (Distance-to-spot) is 12:1
- Features include dual-laser targeting; auto-scan; max/min/avg/diff; high/low alarm; backlit display; auto power-off
- Drop protection to 6.6-feet (2 m)
- Measurement Range: -22-degrees to 752-degrees F (-30-degrees to 400-degrees C)
- Not a medical device; thermometer is NOT intended for use on people or animals.
- Uses one 9-volt battery, with battery life expectancy at 10 hours of continuous use with laser and backlight on

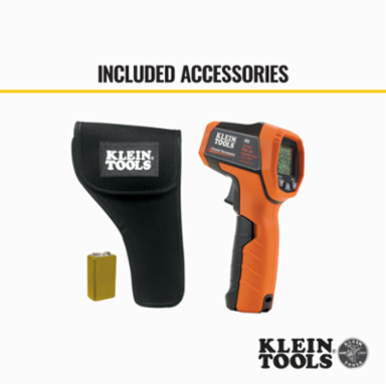

- Includes custom pouch and batteries
- Adjustable emissivity
- Soft-touch, over-mold housing
- For ambient temperatures above freezing, the accuracy is +/- 4-degrees F or +/- 2-percent; Accuracy below freezing is +/- 4-degrees F plus 0.2 degrees per degree below 32-degrees F
- Certified to IEC EN 61326-1.2006, EN608251.1994+A2.2001+A1.2002
- Several Calculation Modes to Facilitate Different Temperature Measurement Applications
Documentation & Downloads
Specifications
Key Specifications
- Application
- Accurate Targeting and Temperature Measurement
- Display
- Digital Backlit
- Accuracy
- +/- 4° F or +/- 2%; Accuracy Below Freezing is +/- 4° F Plus 0.2 Degrees Per Degree Below 32° F
- Included
- Thermometer; Custom Pouch; Batteries
- Drop Protection
- 2 m
- Overall Height (cm)
- 11.5
- Weight (g)
- 281
- Overall Width (Inch)
- 1.84
- Overall Width (cm)
- 4.7
- Width
- 1.8500 in
- Weight
- 0.6150 lbs
Response Time<0.25s
TypeDual Laser Infrared Thermometer
Batteries1 x 9V
Distance to Spot12 -1
Weight (oz)9.9
Overall Length (cm)17.3
Overall Length (Inch)6.82
Overall Height (Inch)4.53
Height4.5300 in
Depth6.8300 in
