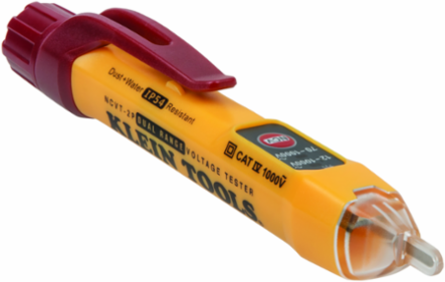

Klein Tools NCVT2P Dual Range Non-Contact Voltage Tester 12-1000V AC, IP54, 6.6 Foot Drop Protection
- MPN: NCVT2P
- UPC: 092644692321
- PPN: KLT-NCVT2P
- UNSPSC: 41113637
CAD
$37.22
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

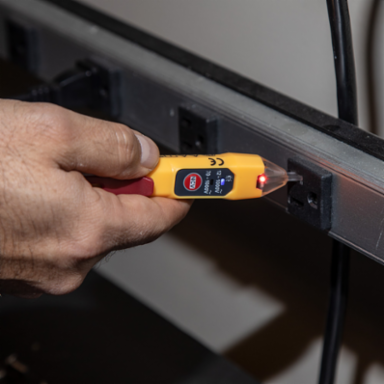

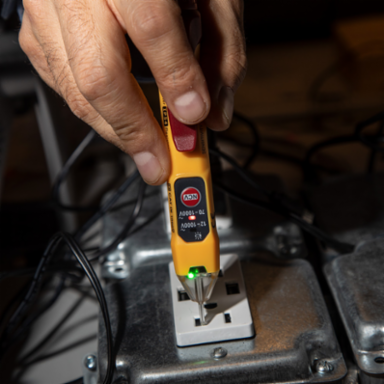

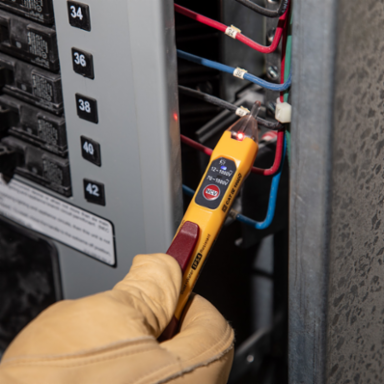

The NCVT-2P is a non-contact voltage tester that detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-2P is rugged enough for any job site.
Features

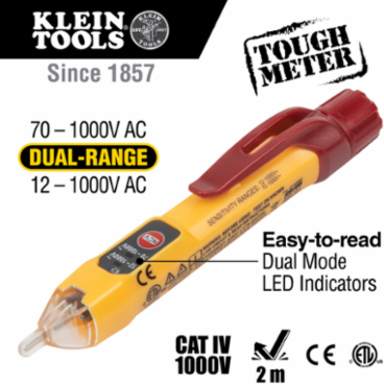

- Non contact voltage tester's dual-range capabilities allow tester to detect from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
- Electrical voltage tester detects voltage with simultaneous visual and audible indicators
- Non-contact detection of low voltage in security, entertainment, communications, environmental control, and irrigation systems
- Green light indicates no voltage
- Lightweight, compact tool with pocket clip provides convenient storage and quick access
- Auto power-off feature conserves and extends battery life
- CAT IV 1000 V rating provides expanded operation and protection

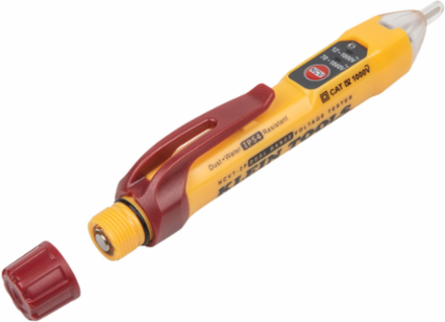

- Screw-thread battery cap with O-ring ensures protection against dust and water ingress
- 6.6-Foot (2 m) drop protection
- IP54: Dustproof and waterproof
- Conforms to CE requirements
- US Patent 10,073,142, D750,985 and other patents pending
- LED and Audible Beep Indications, Auto-Power Off, Pocket Clip
Documentation & Downloads
Specifications
Key Specifications
- Pollution Degree
- 2
- Standard
- CAT IV 1000V
- Included
- NCVT; Batteries
- Battery Life
- 142 hr
- Material
- Polycarbonate
- Application
- Non-Contact Detection and Testing of AC Voltage
- Overall Height
- 2.2 cm (0.86 Inch)
- Overall Length
- 5.82 Inch (14.8 cm)
- Width
- 1.0900 in
- Weight
- 0.0520 lbs
Frequency50 - 500 Hz
Drop Protection6.6' (2 m)
TypeDual Range
Batteries2 x AAA
Ingress ProtectionIP54
Voltage12 – 1000V AC; 70 – 1000V AC
Overall Width2.8 cm (1.09 Inch)
Height0.8600 in
Depth5.8300 in
