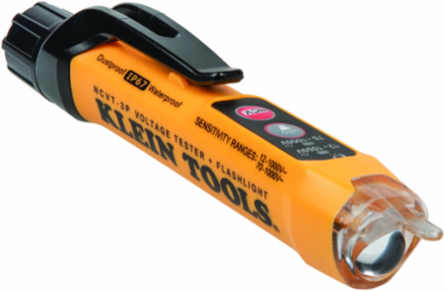

Klein Tools NCVT3P Dual-Range Non-Contact Voltage Tester, 12-1000V AC, IP67, Flashlight, 6.6' Drop Protection
- MPN: NCVT3P
- UPC: 092644693236
- PPN: KLT-NCVT3P
- UNSPSC: 41113637
CAD
$42.88
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The NCVT-3P is a non-contact voltage tester with an integrated flashlight. The voltage sensor detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-3P is rugged enough for any job site.
Features

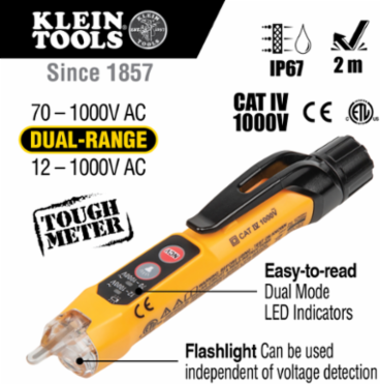

- Dual modes indicates low voltage (12 to 70V AC) and standard voltage (70 to 1000V AC) allowing broad application
- Detects voltage with simultaneous visual and audible voltage indicators

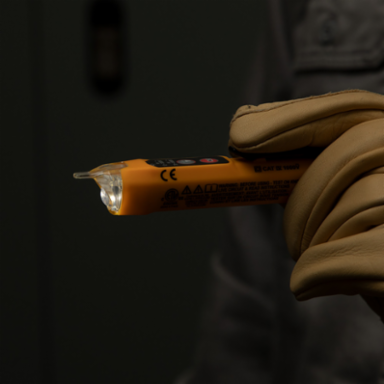

- Bright flashlight illuminates work area and may be used independent of voltage detection function
- Green light indicates no voltage
- Lightweight, compact tool with pocket clip provides convenient storage and quick access
- Auto power-off feature conserves and extends battery life
- CAT IV 1000V rating provides expanded operation and protection

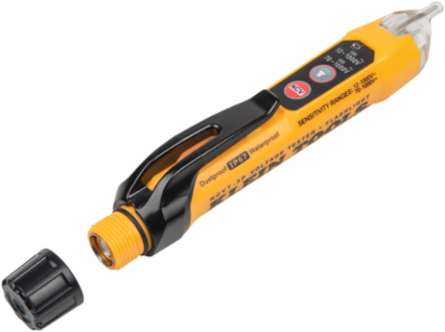

- Screw-thread battery cap with O-ring ensures protection against dust and water ingress
- 6.6-Foot (2 m) drop protection
- IP67: Dustproof and waterproof
- Conforms to CE requirements
- US Patent 10,073,142, D750,985 and other patents pending
- Flashlight, LED and Audible Beep Indications, Auto-Power Off, Pocket Clip
Documentation & Downloads
Specifications
Additional
- Voltage
- Range 1 12-1000V AC, Range 2 70-1000V AC
- Drop Protection
- 6.6 ft (2 m)
- Width
- 1.14 in
- Depth
- 5.70 in
- Material
- Polycarbonate with screw-thread battery cap and O-ring seal
- Batteries
- 2 x AAA
- Pollution Degree
- 2
- Standard
- CAT IV 1000V
Frequency50 - 500 Hz
Overall Length5.83 in (14.5 cm)
Overall Height0.93 in (2.4 cm)
Weight0.1040 lbs
Ingress ProtectionIP67 - Dustproof and Waterproof
Battery Life125 hr
TypeDual Range with LED Flashlight
ComplianceCE
