Tripp Lite N520-10M 10 Meter Duplex Multimode 50/125 Fiber Patch Cable LC/LC
- MPN: N520-10M
- UPC: 037332116970
- PPN: TRP-N520-10M
CAD
$34.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

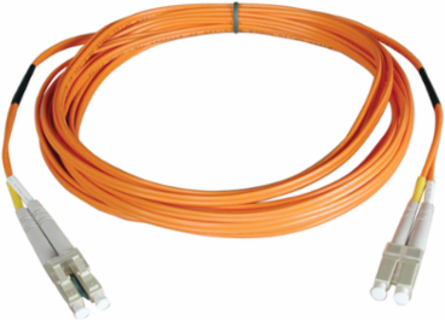

10 Meter Duplex Multimode 50/125 Fiber Patch Cable LC/LC
Features
- Premium PVC multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth, optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
- Network Speed
- 1 Gbps
- Attenuation @ 1300NM
- 1.0 dB/km max
- Bandwidth @ 1300NM
- 600 MHz-km min
- Proof Test Level
- 100,000 PSI
- Optical Mode
- OM2
- Cable Length
- 10 m (32.8 ft)
- Core Diameter
- 50 micron
- Primary Coating Diameter
- 245 +/- 15 microns
- Secondary Coating Diameter
- 900 +/- 50 microns
- Color
- Orange
Attenuation @ 850NM3.5 dB/km max
Bandwidth @ 850NM220 MHz-km min
Numerical Aperture.275 nominal
Number of Fibers2
Fiber TypeDuplex Multimode 50/125
Connector TypeLC Duplex Male to LC Duplex Male
Clad Diameter125 micron
Primary Coating MaterialAcrylate
Secondary Coating MaterialPVC
ApprovalsFDDI, OFNR rated
