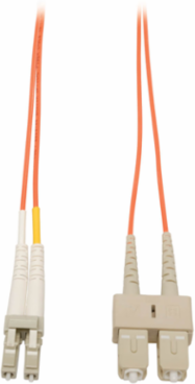

Tripp Lite N516-10M 10M Duplex Multimode Fiber Patch Cable (LC/SC), 50/125 Micron, PVC Jacket
- MPN: N516-10M
- UPC: 037332116963
- PPN: TRP-N516-10M
CAD
$46.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
10M Duplex Multimode Fiber Patch Cable (LC/SC), 50/125 Micron, PVC Jacket
Features
- Premium PVC 50/125 multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher Bandwidth, optimized for Gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
- Bandwidth @ 850NM
- 220 MHz-km minimum
- Attenuation @ 850NM
- 3.5 dB/km maximum
- Bandwidth @ 1300NM
- 600 MHz-km minimum
- Numerical Aperture
- .275 nominal
- Clad Diameter
- 125 micron
- Secondary Coating Diameter
- 900 +/- 50 microns
- Number of Fibers
- 2
- Technology
- Multimode
- Connector B
- SC Duplex Male
- Primary Coating Material
- Acrylate
- Optical Mode
- OM2
- Push/Pull Tabs
- No
Network Speed1 Gbps
Attenuation @ 1300NM1.0 dB/km maximum
Proof Test Level100,000 PSI
Core Diameter50 micron
Primary Coating Diameter245 +/- 15 microns
Cable Length10 m (32.8 ft)
Fiber TypeMultimode, 50/125 micron
Connector ALC Duplex Male
Secondary Coating MaterialPVC
ColorOrange
ComplianceFDDI rated, OFNR rated
