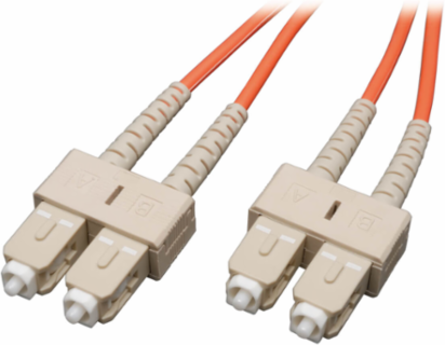

Tripp Lite N506-10M Duplex Multimode 50/125 Fiber Patch Cable SC/SC 10M (33 ft.)
- MPN: N506-10M
- UPC: 037332116956
- PPN: TRP-N506-10M
CAD
$43.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Duplex Multimode 50/125 Fiber Patch Cable SC/SC 10M (33 ft.)
Features
- Premium PVC 50/125 multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth, optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
- Cable Length
- 10 m (33 ft)
- Bandwidth @ 850NM
- 220 MHz-km min
- Attenuation @ 850NM
- 3.5 dB/km max
- Core Diameter
- 50 micron
- Primary Coating Diameter
- 245 b1 15 microns
- Number of Fibers
- 2
- Numerical Aperture
- 0.275 nominal
- Primary Coating Material
- Acrylate
- Connector Type
- SC Duplex Male to SC Duplex Male
- Push/Pull Tabs
- No
- Color
- Orange
Bandwidth @ 1300NM600 MHz-km min
Attenuation @ 1300NM1.0 dB/km max
Network Speed1 Gbps
Clad Diameter125 micron
Secondary Coating Diameter900 b1 50 microns
Optical ModeOM2
Proof Test Level100,000 PSI
Secondary Coating MaterialPVC
Jacket MaterialPVC
ComplianceFDDI and OFNR rated
WarrantyLifetime limited
