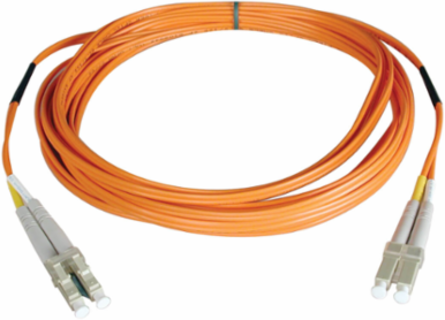

Tripp Lite N520-15M 15M Duplex Multimode Fiber Patch Cable (LC/LC), 50/125 Micron, LSZH
- MPN: N520-15M
- UPC: 037332119490
- PPN: TRP-N520-15M
CAD
$45.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15M Duplex Multimode Fiber Patch Cable (LC/LC), 50/125 Micron, LSZH
Features
- Premium PVC multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
- Network Speed
- 1 Gbps
- Cable Length
- 15 m (49.2 ft.)
- Core Diameter
- 50 micron
- Performance - Attenuation
- 3.5 dB/km @850NM max, 1.0 dB/km @1300NM max
- Numeric Aperture
- 0.275 nominal
- Insertion Loss
- 0.2 dB typical
- Connector Type
- LC duplex male to LC duplex male
- Jacket Material
- PVC
- Primary Coating Material
- Acrylate
- Secondary Coating Material
- PVC
- Warranty
- Lifetime limited warranty
- Side A Connector
- LC duplex male
Optical ModeOM2
Number of Fibers2
Clad Diameter125 micron
Performance - Bandwidth220 MHz-km @850NM min, 600 MHz-km @1300NM min
Proof Test Level100,000 PSI
Fiber Type50/125 micron multimode
Cable Jacket RatingLSZH
Primary Coating Diameter245 micron
Secondary Coating Diameter900 micron
ApprovalsFDDI, OFNR rated
ColorOrange
Side B ConnectorLC duplex male
