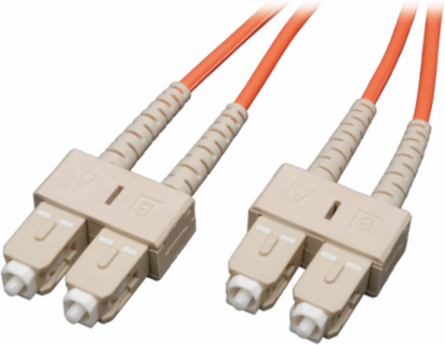

Tripp Lite N506-15M 15M Duplex Multimode Fiber Patch Cable SC/SC, 50/125 Micron, 1Gbps
- MPN: N506-15M
- UPC: 037332119612
- PPN: TRP-N506-15M
CAD
$53.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15M Duplex Multimode Fiber Patch Cable SC/SC, 50/125 Micron, 1Gbps
Features
- Premium PVC 50/125 multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
| Cable Length | 15 m (49.2 ft) |
|---|---|
| Fiber Type | Duplex Multimode 50/125 micron |
| Clad Diameter | 125 micron |
| Connector Type | SC Duplex Male to SC Duplex Male |
| Bandwidth | 220 MHz-KM @850NM, 600 MHz-KM @1300NM minimum |
| Primary Coating Diameter | 245 micron |
| Secondary Coating Diameter | 900 micron |
| Numeric Aperture | 0.275 nominal |
| Color | Orange |
| Compliance | Lifetime limited warranty |
| Network Speed | 1 Gbps |
|---|---|
| Core Diameter | 50 micron |
| Number of Fibers | 2 |
| Optical Mode | OM2 |
| Attenuation | 3.5 dB/km @850NM, 1.0 dB/km @1300NM maximum |
| Primary Coating Material | Acrylate |
| Secondary Coating Material | PVC |
| Proof Test Level | 100,000 PSI |
| Certification | FDDI and OFNR rated |
