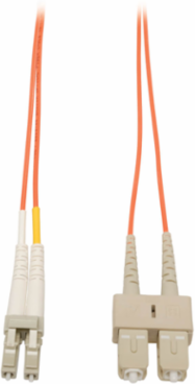

Tripp Lite N516-15M 15M Duplex Multimode Fiber Patch Cable (LC/SC), 50/125 Micron, FDDI & OFNR Rated
- MPN: N516-15M
- UPC: 037332119551
- PPN: TRP-N516-15M
CAD
$49.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15M Duplex Multimode Fiber Patch Cable (LC/SC), 50/125 Micron, FDDI & OFNR Rated
Features
- Premium PVC 50/125 multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
| Network Speed | 1 Gbps |
|---|---|
| Technology | Multimode |
| Core Diameter | 50 micron |
| Attenuation | 3.5 dB/km @850nm max, 1.0 dB/km @1300nm max |
| Numeric Aperture | 0.275 nominal |
| Cable Length | 15 m (49.2 ft) |
| Side B Connector | SC Duplex (male) |
| Color | Orange |
| Warranty | Lifetime limited warranty |
| Optical Mode | OM2 |
|---|---|
| Number of Fibers | 2 |
| Clad Diameter | 125 micron |
| Bandwidth | 220 MHz-km @850nm min, 600 MHz-km @1300nm min |
| Proof Test Level | 100,000 PSI |
| Side A Connector | LC Duplex (male) |
| Material | PVC jacket, acrylate primary coating |
| Compliance | FDDI Rated, OFNR Rated |
