Tripp Lite N520-02M 2M Duplex Multimode Fiber Patch Cable LC/LC, 50/125 Micron, LSZH Jacket
- MPN: N520-02M
- UPC: 037332119513
- PPN: TRP-N520-02M
CAD
$24.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

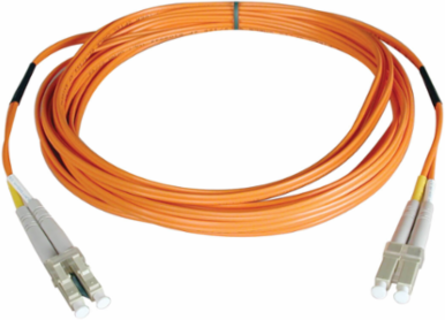

2M Duplex Multimode Fiber Patch Cable LC/LC, 50/125 Micron, LSZH Jacket
Features
- Premium PVC 50/125 multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
- Number of Fibers
- 2
- Cable Length
- 2 m (6.6 ft)
- Clad Diameter
- 125 micron
- Cable Jacket Rating
- FDDI, OFNR rated LSZH
- Optical Mode
- OM2
- Bandwidth
- 220 MHz-km @ 850 nm, 600 MHz-km @ 1300 nm
- Numeric Aperture
- 0.275 nominal
- Primary Coating Diameter
- 245 micron
- Secondary Coating Diameter
- 900 micron
- Color
- Orange
Network Speed1 Gbps
Core Diameter50 micron
Fiber Type50/125 micron multimode
Connector TypeLC Duplex Male to LC Duplex Male
TechnologyMultimode
Attenuation Loss3.5 dB/km @ 850 nm, 1.0 dB/km @ 1300 nm
Proof Test Level100,000 PSI
Primary Coating MaterialAcrylate
Secondary Coating MaterialPVC
WarrantyLifetime limited warranty
