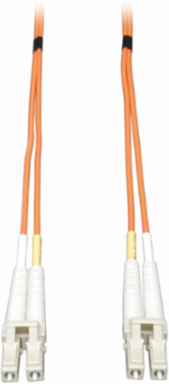

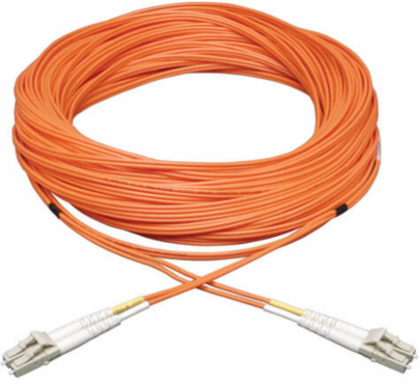

Tripp Lite N520-35M Duplex Multimode Fiber Patch Cable LC/LC 35M (115 ft.) 50/125 Micron
- MPN: N520-35M
- UPC: 037332157041
- PPN: TRP-N520-35M
CAD
$111.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Duplex Multimode Fiber Patch Cable LC/LC 35M (115 ft.) 50/125 Micron
Features
- Premium PVC multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth, optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
| Cable Length | 35 m (115 ft) |
|---|---|
| Number of Fibers | 2 |
| Fiber Type | 50/125 micron multimode |
| Bandwidth | 220 MHz-km @ 850 nm min, 600 MHz-km @ 1300 nm min |
| Core Diameter | 50 micron |
| Connector Type | LC duplex male to LC duplex male |
| Jacket Material | PVC |
| Primary Coating Material | Acrylate |
| Secondary Coating Material | PVC |
| Approvals | FDDI and OFNR rated |
| Network Speed | 1 Gbps |
|---|---|
| Optical Mode | OM2 |
| Attenuation | 3.5 dB/km @ 850 nm max, 1.0 dB/km @ 1300 nm max |
| Proof Test Level | 100,000 PSI |
| Clad Diameter | 125 micron |
| Numeric Aperture | 0.275 nominal |
| Primary Coating Diameter | 245 15 microns |
| Secondary Coating Diameter | 900 50 microns |
| Color | Orange |
| Product Warranty Period | Lifetime limited warranty |
