Tripp Lite N520-50M 50/125 Duplex Multimode Fiber Patch Cable LC/LC, 50M (164 ft.), OM2
- MPN: N520-50M
- UPC: 037332119476
- PPN: TRP-N520-50M
CAD
$177.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

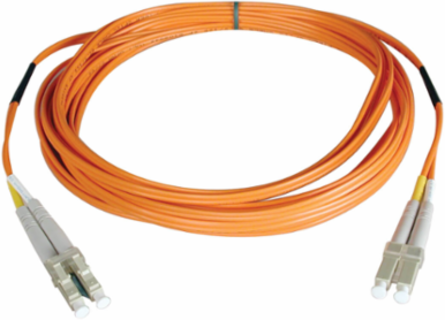

50/125 Duplex Multimode Fiber Patch Cable LC/LC, 50M (164 ft.), OM2
Features
- Premium PVC multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
| Network Speed | 1 Gbps |
|---|---|
| Optical Mode | OM2 |
| Attenuation | 3.5 dB/km @850 nm, 1.0 dB/km @1300 nm max |
| Insertion Loss | 0.2 dB typical |
| Core Diameter | 50 micron |
| Cable Length | 50 m (164 ft) |
| Connector Type | LC duplex (male) to LC duplex (male) |
| Primary Coating Material | Acrylate |
| Secondary Coating Material | PVC |
| Color | Orange |
| Product Warranty Period | Lifetime limited warranty |
| Fiber Type | 50/125 micron multimode |
|---|---|
| Number of Fibers | 2 |
| Bandwidth | 220 MHz-km @850 nm min, 600 MHz-km @1300 nm min |
| Proof Test Level | 100,000 PSI |
| Clad Diameter | 125 micron |
| Cable Jacket Rating | LSZH |
| Primary Coating Diameter | 245 micron |
| Secondary Coating Diameter | 900 micron |
| Cable Jacket Material | PVC |
| Compliance | FDDI and OFNR rated |
