Tripp Lite N506-30M 30M Duplex Multimode 50/125 Fiber Patch Cable SC/SC, OM2, PVC Jacket
- MPN: N506-30M
- UPC: 037332119582
- PPN: TRP-N506-30M
CAD
$93.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

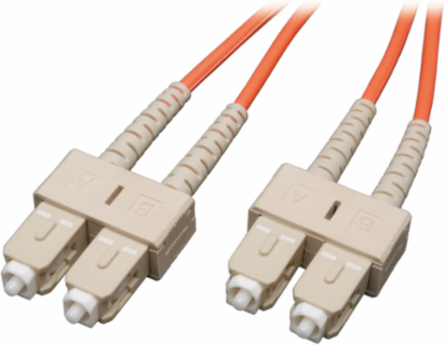

30M Duplex Multimode 50/125 Fiber Patch Cable SC/SC, OM2, PVC Jacket
Features
- Premium PVC 50/125 multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
| Cable Length | 30 m (98.4 ft) |
|---|---|
| Bandwidth | 220 MHz-KM @850 nm min, 600 MHz-KM @1300 nm min |
| Insertion Loss | 0.2 dB typical |
| Optical Mode | OM2 |
| Core Diameter | 50 micron |
| Proof Test Level | 100,000 PSI |
| Cable Jacket Rating | LSZH |
| Color | Orange |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
| Network Speed | 1 Gbps |
|---|---|
| Attenuation | 3.5 dB/km @850 nm max, 1.0 dB/km @1300 nm max |
| Fiber Type | Duplex Multimode 50/125 micron |
| Number of Fibers | 2 |
| Clad Diameter | 125 micron |
| Connector Type | SC Duplex (Male) on each end |
| Jacket Material | PVC |
| Approvals | FDDI, OFNR rated |
