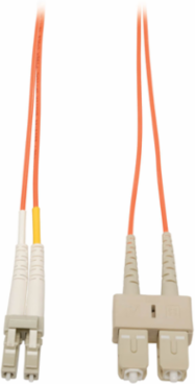

Tripp Lite N516-03M 3M Duplex Multimode 50/125 Fiber Patch Cable LC/SC, 1Gbps, Orange
- MPN: N516-03M
- UPC: 037332117229
- PPN: TRP-N516-03M
CAD
$24.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
3M Duplex Multimode 50/125 Fiber Patch Cable LC/SC, 1Gbps, Orange
Features
- Premium PVC 50/125 multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth, optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
- Network Speed
- 1 Gbps
- Attenuation @ 1300nm
- 1.0 dB/km maximum
- Bandwidth @ 1300nm
- 600 MHz-km minimum
- Cable Length
- 3 m (9.8 ft)
- Clad Diameter
- 125 micron
- Primary Coating Diameter
- 245 ± 15 microns
- Secondary Coating Diameter
- 900 ± 50 microns
- Optical Mode
- OM2
- Color
- Orange
- Compliance
- FDDI and OFNR rated
Attenuation @ 850nm3.5 dB/km maximum
Bandwidth @ 850nm220 MHz-km minimum
Proof Test Level100,000 PSI
Core Diameter50 micron
Primary Coating MaterialAcrylate
Secondary Coating MaterialPVC
Numerical Aperture0.275 nominal
Connector TypeLC duplex (male) to SC duplex (male)
TechnologyMultimode
WarrantyLifetime limited
