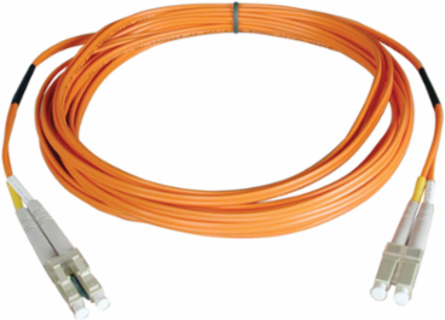

Tripp Lite N520-03M 3M Multimode 50/125 Fiber Patch Cable (LC/LC) - OM2, 2 Fibers, PVC Jacket
- MPN: N520-03M
- UPC: 037332117236
- PPN: TRP-N520-03M
CAD
$25.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
3M Multimode 50/125 Fiber Patch Cable (LC/LC) - OM2, 2 Fibers, PVC Jacket
Features
- Premium PVC multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth, optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
| Network Speed | 1 Gbps |
|---|---|
| Attenuation @ 1300NM | 1.0 dB/km maximum |
| Bandwidth @ 1300NM | 600 MHz-km minimum |
| Optical Mode | OM2 |
| Cable Length | 3 m (9.8 ft) |
| Clad Diameter | 125 micron |
| Secondary Coating Diameter | 900 +/- 50 microns |
| Secondary Coating Material | PVC |
| Fiber Type | Multimode 50/125 micron |
| Push/Pull Tabs | No |
| Color | Orange |
| Warranty | Lifetime limited warranty |
| Attenuation @ 850NM | 3.5 dB/km maximum |
|---|---|
| Bandwidth @ 850NM | 220 MHz-km minimum |
| Proof Test Level | 100,000 PSI |
| Number of Fibers | 2 |
| Core Diameter | 50 micron |
| Primary Coating Diameter | 245 +/- 15 microns |
| Primary Coating Material | Acrylate |
| Jacket Material | PVC |
| Connector Type | LC Duplex (Male) |
| Technology | Multimode |
| Approvals | FDDI and OFNR rated |
