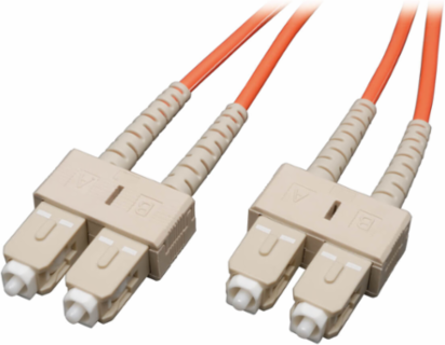

Tripp Lite N506-03M 3M Duplex Multimode Fiber Patch Cable (SC/SC), 50/125 Micron, 1Gbps
- MPN: N506-03M
- UPC: 037332117212
- PPN: TRP-N506-03M
CAD
$36.03
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
3M Duplex Multimode Fiber Patch Cable (SC/SC), 50/125 Micron, 1Gbps
Features
- Premium PVC 50/125 multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth, optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
| Cable Length | 3 m (10 ft) |
|---|---|
| Bandwidth @ 850NM | 220 MHz-KM minimum |
| Attenuation @ 850NM | 3.5 dB/KM max |
| Proof Test Level | 100,000 PSI |
| Core Diameter | 50 micron |
| Primary Coating Diameter | 245 ± 15 microns |
| Numerical Aperture | .275 nominal |
| Primary Coating Material | Acrylate |
| Optical Mode | OM2 |
| Compliance | FDDI rated, OFNR rated |
| Network Speed | 1 Gbps |
|---|---|
| Bandwidth @ 1300NM | 600 MHz-KM minimum |
| Attenuation @ 1300NM | 1.0 dB/KM max |
| Number of Fibers | 2 |
| Clad Diameter | 125 micron |
| Secondary Coating Diameter | 900 ± 50 microns |
| Connectors | SC duplex male to SC duplex male |
| Secondary Coating Material | PVC |
| Color | Orange |
| Warranty | Lifetime limited warranty |
