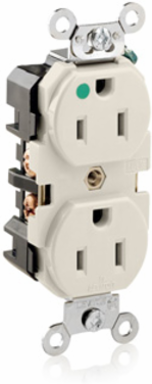

Leviton 8200-T 15 Amp Heavy-Duty Hospital Grade Duplex Receptacle Outlet, Self-Grounding, Light Almond
- MPN: 8200-T
- UPC: 078477475201
- PPN: LEV-8200-T
CAD
$15.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Light Almond
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- RoHS
- Compliant
- UL498HG
- File E13399
CSA C22.2 No. 42File 152105
NOM057
UL Fed Spec WC-596File E13399
Warranty10-Year Limited
Material Specifications
- Body Material
- Nylon
- Color
- Light Almond
- Ground Clips
- Nickel-Plated Brass
- Line Contacts
- Nickel-Plated Brass Triple-Wipe .040 Thick
- Terminal Screws
- Nickel-Plated Brass 10-32
Clamp NutsZinc-Plated Steel
Face MaterialNylon
Grounding ScrewPlated Brass
Strap MaterialNickel-Plated Brass
Mechanical Specifications
- Product ID
- Markings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Torque Range14-16 inch pounds
Product Features
- Device Type
- Duplex Receptacle Outlet
GradeHeavy-Duty Hospital Grade
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- Horsepower Rating
- 1/2 HP
