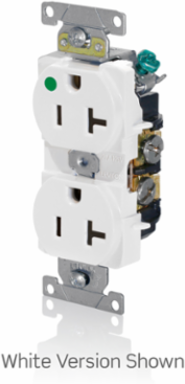

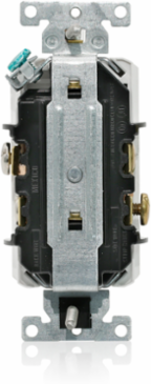

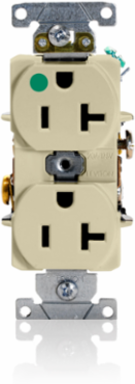

Leviton 8300-HI 20 Amp Duplex Outlet, Hospital Grade, NEMA 5-20R, Nylon, Ivory
- MPN: 8300-HI
- UPC: 078477818909
- PPN: LEV-8300-HI
CAD
$30.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Smooth Face, 20 Amp, 125 Volt, Back and Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Ivory
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-1 & WD-6 |
| RoHS | Non-Compliant |
| UL498HG | File E13399 |
| CSA C22.2 No. 42 | File 152105 |
|---|---|
| NOM | 057 |
| UL Fed Spec WC-596 | File E13399 |
| Warranty | 10-Year Limited |
Material Specifications
| Body Material | Nylon |
|---|---|
| Color | Ivory |
| Ground Clips | Brass |
| Line Contacts | Phosphor Bronze |
| Terminal Screws | Brass |
| Clamp Nuts | Zinc-Plated Steel |
|---|---|
| Face Material | Nylon |
| Grounding Screw | Brass |
| Strap Material | Galvanized Steel with Riveted Ground Contacts |
Mechanical Specifications
| Product ID | Markings are permanently marked on device |
|---|---|
| Terminal Accom. | 14-10 AWG |
| Termination | Back and Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Torque Range | 14-16 inch pounds |
Product Features
| Device Type | Duplex Receptacle Outlet |
|---|---|
| Grade | Heavy-Duty Hospital Grade |
| Feature | Smooth Face |
|---|
Environmental Specifications
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
AC Horsepower Ratings
| Horsepower Rating | 1 HP |
|---|
